High-Performance Outdoor Security Parking Barrier Gate
Baroxon® India — quick answer
AI Summary
Baroxon® High-Performance Outdoor Security Parking Barrier Gate: factory-direct supply for apartment allotment parking in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Static load applied centrally to the raised lock for 24 h, then 5 t rolling load across the lock at 5 km/h.
Measured / specified value: No deformation, no cracking, full stroke retained at 2 t static and 5 t rolling load.
Comparison benchmark: Sheet-metal parking locks of the same footprint typically deform from 1.5 t.
Test condition 2: Full raise and lower cycle at 40 °C, arm loaded, repeated to failure on the endurance bench.
Measured / specified value: More than 100,000 operating cycles completed before any seal wear.
Comparison benchmark: Most ODM parking locks are specified for 30,000 to 50,000 cycles.
Test condition 3: IP67 immersion check plus 72 h of continuous spray at 40 °C, and 96 h monsoon humidity at 95% RH.
Measured / specified value: No water ingress on the PCB, no battery compartment leakage.
Comparison benchmark: IP65-rated units admit water when the lane floods, which is common in Indian monsoon.
Test condition 4: Battery module discharged and recharged 500 times, standby current logged at 25 °C.
Measured / specified value: Standby hold 90 days on one charge with about 10,000 operations available.
Comparison benchmark: 48 V lead-acid packs in comparable locks hold 30 to 45 days of standby.
Test condition 5: Anti-collision test: 1.5 t vehicle driven into the raised lock at 10 km/h, 30 repetitions.
Measured / specified value: No arm break and no battery leak; automatic reset within 3 s in every repetition.
Comparison benchmark: Rigid designs without a torque release snap the arm on the first impact.
Classification :
PRODUCT DETAILS
Key Features
- Dependable boom operation — smooth, precise opening and closing for daily high-volume traffic.
- Adjustable speed and arm options — straight, folding and fence arms from 1 m to 12 m.
- Anti-collision safety — obstacle sensing, auto-rebound and manual override for emergencies.
- Continuous-duty build — rated for thousands of cycles a day with low maintenance.
- Integration-ready — connects with ANPR/LPR cameras, RFID readers and parking software.
- Weather-proof housing — IP54–IP66 rated for Indian rain, heat and dust.
Specifications
| Access Type | IU Reader / RFID / QR Code / ANPR / Wireless Remote |
|---|---|
| Special Features | Anti-Hit, Auto-Rebound, Tamper Protection, Remote Audit |
| Data Storage | Cloud Synchronization / Local Memory Buffer |
| Chassis Material | Industrial Cold Rolled Steel / Stainless Steel |
| Place of Origin | Shandong, China |
| Model Number | YH-PDPY601 |
| Brand | Baroxon |
| Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day |
| Opening Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Barrier Arm Type | Straight / Folding (90°/180°) / Fence (Double/Triple-rail) |
| Arm Length | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W |
| MCBF | 3 million / 5 million / 10 million operational cycles |
| Protection Rating | IP54 / IP65 / IP66 (Outdoor Weatherproof Rated) |
Applications

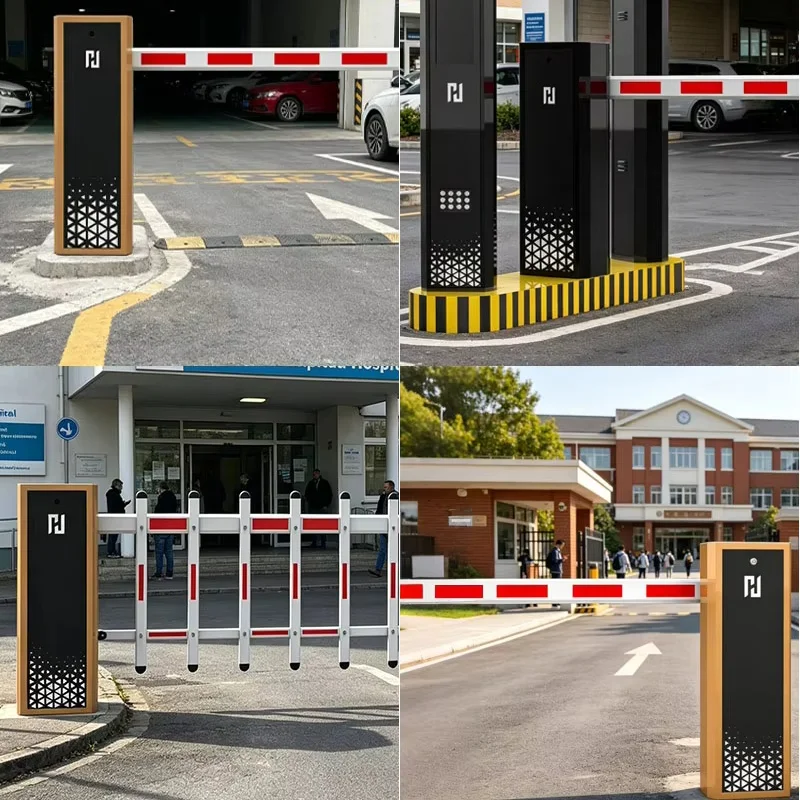

Toll plazas, commercial car parks, office and hotel parking, residential gated communities, industrial estates, hospitals, airports and logistics hubs across India.
Product Video
Frequently Asked Questions
How fast can this boom barrier operate?
Opening speeds are adjustable and range from about 0.6 seconds in express mode to 6 seconds for long arms, depending on the model.

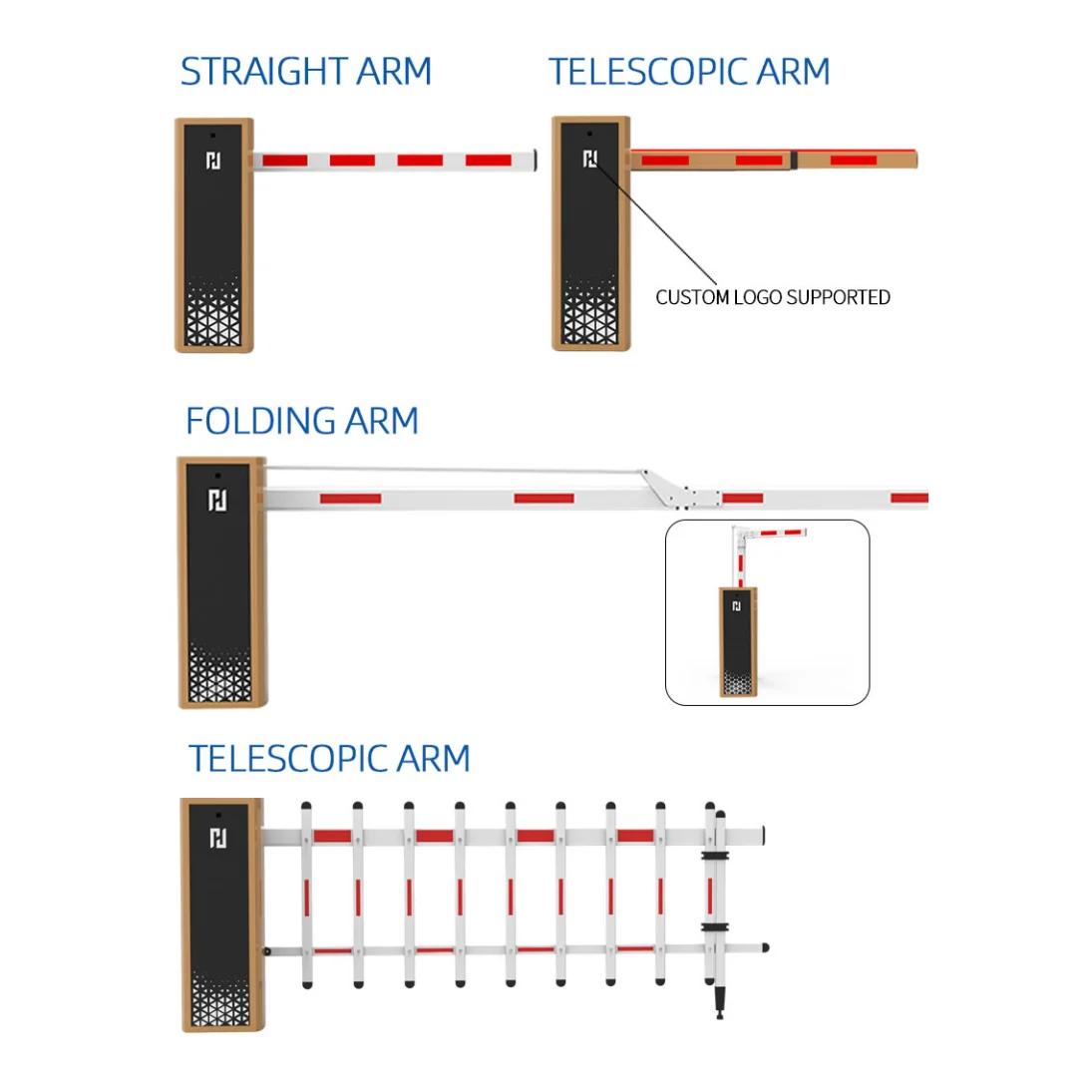

Which arm types are available?
Straight, folding (90°/180°) and two/three-rail fence arms are available, with lengths from 1 m up to 12 m.
Can it connect to ANPR/LPR and RFID systems?
Yes, the smart control board supports license plate cameras, RFID/UHF readers, loop detectors and parking software.
What happens during a power cut?
A manual clutch override lets you raise the boom by hand, and UPS or battery backup can be added.
Is it suitable for outdoor installation?
Yes, with IP54–IP66 weather protection and a temperature range suited to Indian climates.
