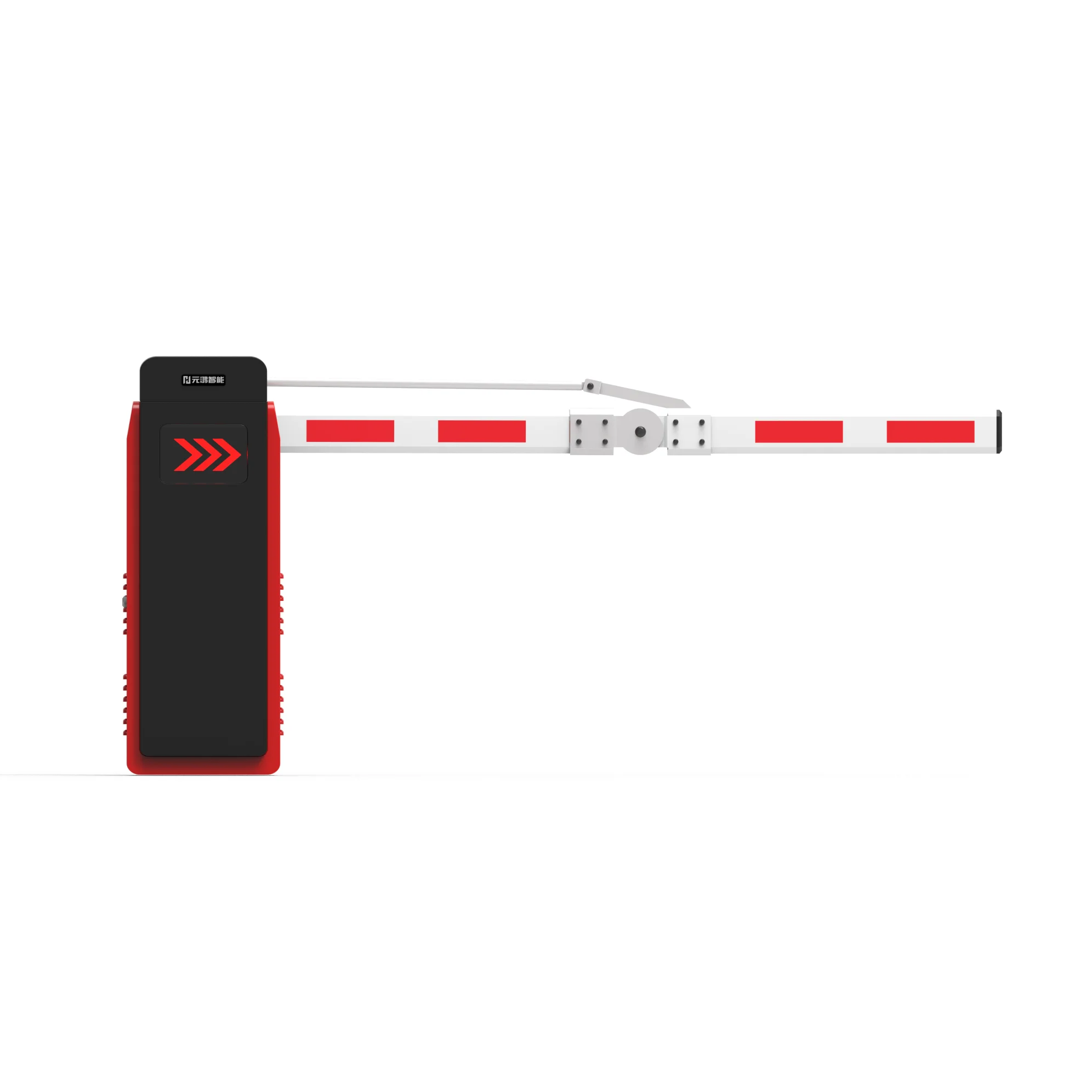

High-Speed Electric Boom Barrier with RFID / IC Card Access for Car Parks
Baroxon® India — quick answer
AI Summary
Baroxon® High-Speed Electric Boom Barrier with RFID / IC Card Access: factory-direct supply for fleet and staff vehicle access in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: UHF 865 to 867 MHz, tag on windscreen, reader mounted at 2.5 m, vehicle crossing at 30 km/h.
Measured / specified value: Stable read distance 6 m to 12 m; read accuracy 99.5% at 30 km/h.
Comparison benchmark: Low-power readers of the same class reach 3 m to 5 m and fall below 97% accuracy above 20 km/h.
Test condition 2: Multi-tag test with up to 200 tags inside the read field simultaneously.
Measured / specified value: No missed tag; anti-collision resolution under 0.4 s.
Comparison benchmark: Basic readers begin missing tags above roughly 40 simultaneous tags.
Test condition 3: Interference test with the reader placed beside a 3-phase motor starter and a 5 kW VFD enclosure.
Measured / specified value: No read loss with the reader 1 m from the VFD; shield kit available for closer mounting.
Comparison benchmark: Unshielded readers lose reads within 2 m of a VFD.
Test condition 4: Ingress test on the reader and antenna: IP66 spray for 10 min, 96 h at 95% RH, −20 °C to +70 °C cycling.
Measured / specified value: No read degradation after the cycle; RJ45 and coaxial joints stayed dry.
Comparison benchmark: Readers rated IP54 lose read range once water sits on the radome.
Classification :
PRODUCT DETAILS
Key Features
- RFID / IC card ready — onboard smart logic board supports card readers, remote keys, smartphones and license plate cameras.
- High-speed brushless drive — express opening from 0.6 s with digital frequency conversion for silent, smooth movement.
- Continuous-duty motor — rated for 5,000 cycles per day with an MCBF of up to 10 million cycles.
- Space-saving modular design — fits tight car park gantries, with fast installation and MTTR under 30 minutes.
- Safety-first operation — anti-collision auto-rebound, loop detector synchronisation and a manual power-failure override.
- Integration-ready — connects to ANPR/LPR, cloud parking, fee collection and FASTag-style camera-based gate systems.
Specifications
| Access Type | Card. Code. Key. Smartphone. Others |
|---|---|
| Special Features | Anti-Theft. Siren. Motion Detection. Night Vision. Audio. Attendance. Others |
| Storage | Cloud. Memory Card |
| Material | Cold-rolled Steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China |
| Model Number | YH-PDPY601 |
| Brand | Baroxon |
| Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day |
| Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

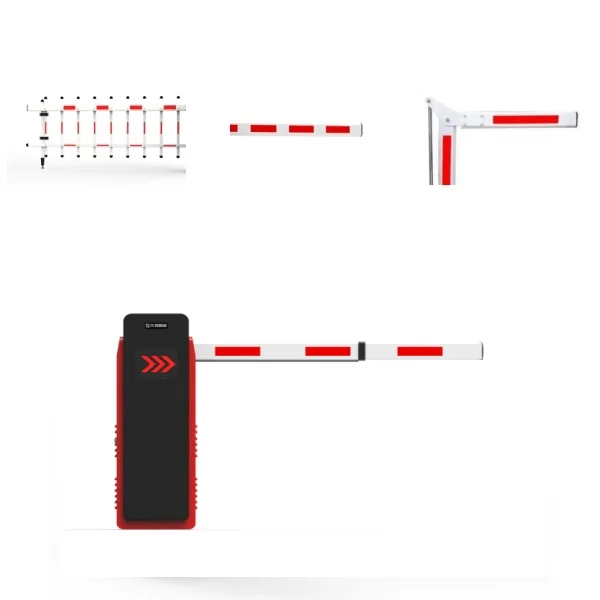

| Barrier Type | Straight / Folding (90°/180°) / Fence (2-3 rail) |
| Arm Length | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W |
| MCBF | 3 million / 5 million / 10 million cycles |
| Housing | 2.0mm Cold-rolled Steel / Powder Coating |
| MTTR | < 30 minutes |
| Protection Class | IP54 / IP65 / IP66 |
Applications

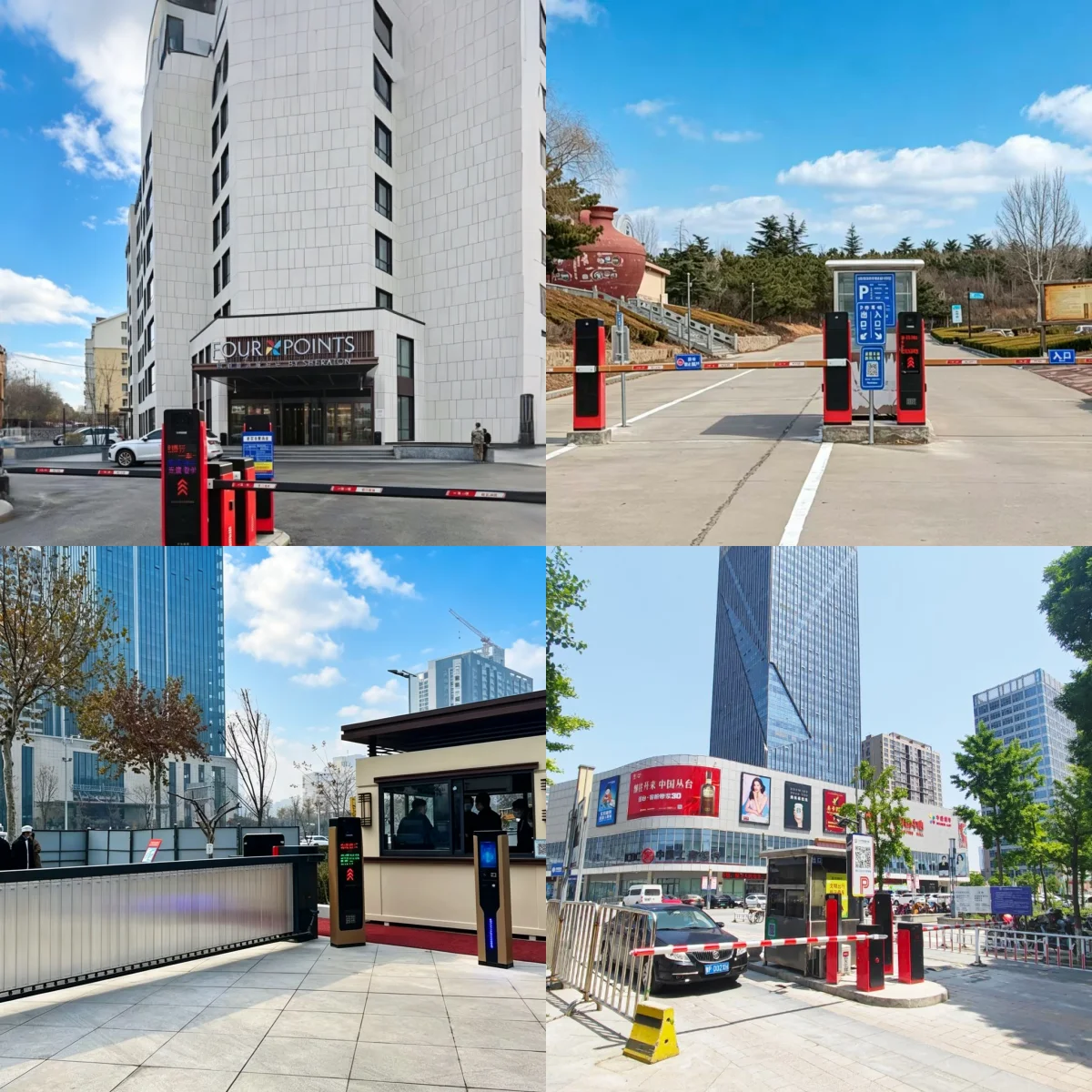

Suited to shopping malls, office towers, commercial car parks, residential gated communities, hospitals, railway and metro parking lots, and campus entry points across India.
Product Video
Frequently Asked Questions
Which access methods does this barrier support?
It supports RFID / IC cards, PIN codes, remote keys, smartphone credentials and license plate recognition cameras — all through the integrated smart logic board.
How many vehicles can it handle per day?
The continuous-duty motor is rated for up to 5,000 cycles per day, which comfortably covers most commercial car park volumes.
Can it work with an existing parking management system?
Yes. It provides standard interfaces for ANPR/LPR cameras, loop detectors, fee booths and cloud-based parking software.
What happens during a power failure?
A manual clutch override lets you raise and lower the boom by hand, and the system can be connected to a UPS or generator.
