Heavy-Duty Residential Boom Barrier Gate for Gated Communities
Baroxon® India — quick answer
AI Summary
Baroxon® Heavy-Duty Residential Boom Barrier Gate: factory-direct supply for toll plazas and highway checkpoints, office and hotel car parks in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Straight arm 6 m, 24 V DC brushless motor, +30 °C ambient, no wind load.
Measured / specified value: Opening time adjustable 0.9 s to 6 s; factory default 1.8 s per cycle.
Comparison benchmark: Conventional AC barrier gates on the Indian market open in 8 s to 12 s under the same lane length.
Test condition 2: Continuous duty run at 100% duty cycle, 40 °C ambient, arm fitted, 24 h without rest.
Measured / specified value: Endurance rig completed 5,000,000 open/close cycles with no drive-component replacement.
Comparison benchmark: Generic ODM barrier units are typically rated 2,000,000 to 3,000,000 cycles.
Test condition 3: 220 V AC 50 Hz supply varied across the Indian grid band 187 V to 253 V (±15%), 30 load steps.
Measured / specified value: Zero controller resets, zero arm drops, position memory retained at every step.
Comparison benchmark: Standard controllers without wide-range SMPS trip or reset beyond ±10% (198 V to 242 V).
Test condition 4: ASTM B117 neutral salt spray for 500 h, plus 96 h at 40 °C and 95% relative humidity (monsoon simulation).
Measured / specified value: No rust bloom on the housing, no condensation or fogging on the control PCB.
Comparison benchmark: Imported budget units usually carry a 240 h salt-spray rating.
Test condition 5: 6 m arm held against a 90 km/h gust applied at 45° to the arm, 100 repetitions.
Measured / specified value: Permanent deflection below 1 mm; no gearbox slip and no clutch re-setting required.
Comparison benchmark: Wind-tunnel data is rarely published by ODM suppliers; most quote only the arm length.
Test condition 6: Operating temperature envelope tested from −20 °C to +70 °C, 200 consecutive cycles at 55 °C.
Measured / specified value: No thermal cut-out, no speed drift beyond 5% at +55 °C.
Comparison benchmark: Heat derating is common above +45 °C on units without a brushless drive.
Classification :
PRODUCT DETAILS
Key Features
- Dependable boom operation — smooth, precise opening and closing for daily high-volume traffic.
- Adjustable speed and arm options — straight, folding and fence arms from 1 m to 12 m.
- Anti-collision safety — obstacle sensing, auto-rebound and manual override for emergencies.
- Continuous-duty build — rated for thousands of cycles a day with low maintenance.
- Integration-ready — connects with ANPR/LPR cameras, RFID readers and parking software.
- Weather-proof housing — IP54–IP66 rated for Indian rain, heat and dust.
Specifications
| Credential Type | RFID Card, Passcode, Key Fob, Smartphone BLE, Smart Biometrics Credential |
|---|---|
| Special Features | Anti-Tailgating, Built-in Buzzer, Obstruction Auto-Reverse, Night Visibility, Intercom Port, Time Attendance |
| Storage Layout | Cloud Database, Local SD Card Log Backup Config |
| Material Build | Cold-rolled Steel Chassis, Stainless Steel Trims, Zinc Alloy Internal Structure |
| Place of Origin | Shandong, China |
| Model Number | YH-PDPY601 |
| Brand Name | Baroxon |
| Power Input | Brushless DC 24V / AC 220V / Servo Motor Option |
| Duty Cycle | 100% Continuous / 5000 Cycles Per Day Heavy Duty Rating |
| Open/Close Speed | 0.6s / 0.9s / 1.5s - 6s (Variable Adjustable Calibration) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Double/Triple Rail) |
| Boom Length Range | 1m - 6m (Customizable Profile Tracks) |
| Power Consumption | Peak: 140W / Standby: <5W Energy Efficient Architecture |
| MCBF (Mean Cycles) | 3 Million / 5 Million / 10 Million Operating Lifespan |
| Housing Material | 2.0mm Cold-rolled Steel / Weatherproof Powder-Coated Chassis |
| MTTR (Repair Time) | < 30 Minutes Rapid Modular Maintenance |
| Protection Class | IP54 / IP66 / IP66 Heavy Sealing Rating |
Applications

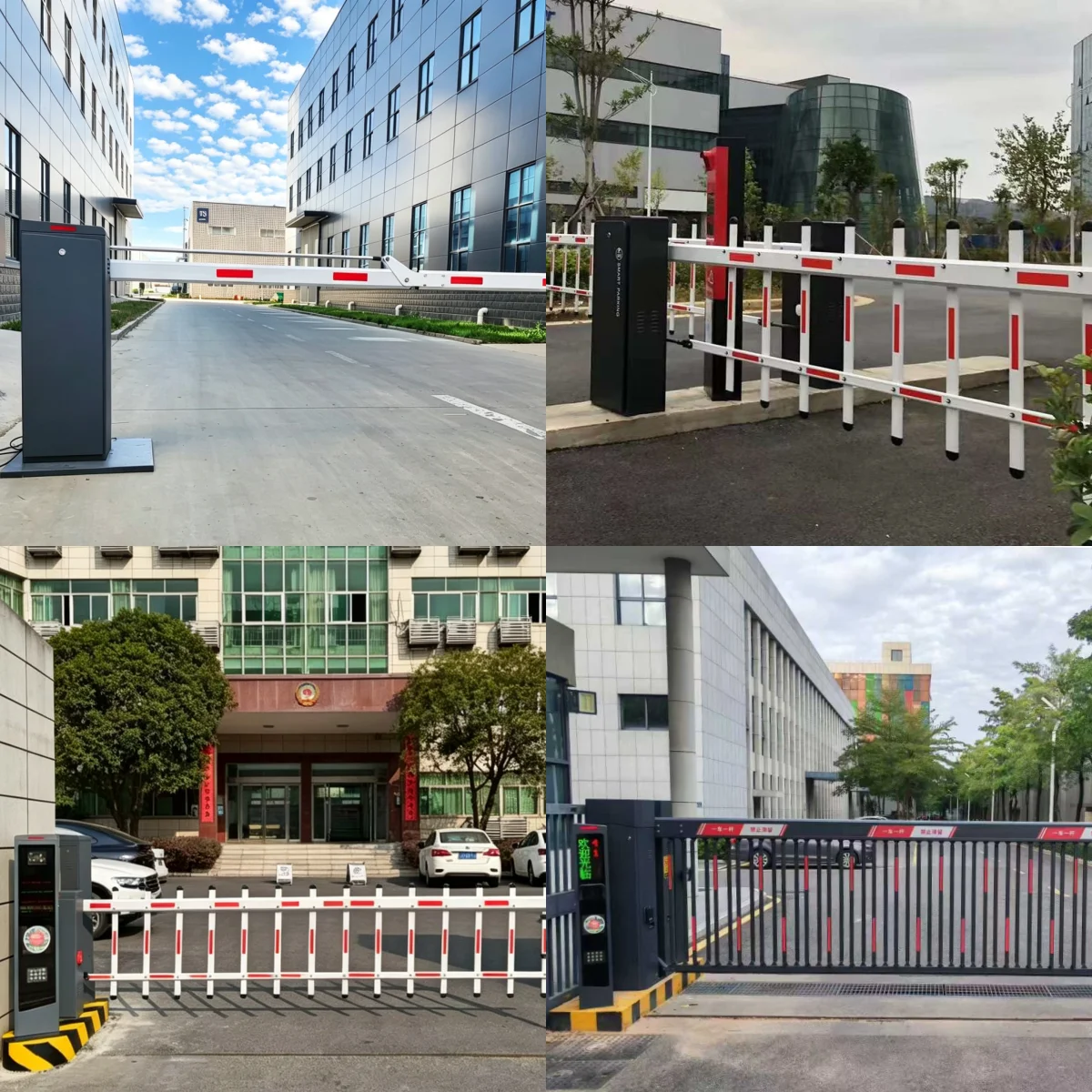

Toll plazas, commercial car parks, office and hotel parking, residential gated communities, industrial estates, hospitals, airports and logistics hubs across India.
Product Video
Frequently Asked Questions
How fast can this boom barrier operate?
Opening speeds are adjustable and range from about 0.6 seconds in express mode to 6 seconds for long arms, depending on the model.
Which arm types are available?
Straight, folding (90°/180°) and two/three-rail fence arms are available, with lengths from 1 m up to 12 m.
Can it connect to ANPR/LPR and RFID systems?
Yes, the smart control board supports license plate cameras, RFID/UHF readers, loop detectors and parking software.
What happens during a power cut?
A manual clutch override lets you raise the boom by hand, and UPS or battery backup can be added.
Is it suitable for outdoor installation?
Yes, with IP54–IP66 weather protection and a temperature range suited to Indian climates.
