Compact Access Control Boom Barrier with Smart Recognition Software
Baroxon® India — quick answer
AI Summary
Baroxon® Compact Access Control Boom Barrier with Smart Recognition Software: factory-direct supply for toll plazas and highway checkpoints in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Straight arm 6 m, 24 V DC brushless motor, +30 °C ambient, no wind load.
Measured / specified value: Opening time adjustable 0.9 s to 6 s; factory default 1.8 s per cycle.
Comparison benchmark: Conventional AC barrier gates on the Indian market open in 8 s to 12 s under the same lane length.
Test condition 2: Continuous duty run at 100% duty cycle, 40 °C ambient, arm fitted, 24 h without rest.
Measured / specified value: Endurance rig completed 5,000,000 open/close cycles with no drive-component replacement.
Comparison benchmark: Generic ODM barrier units are typically rated 2,000,000 to 3,000,000 cycles.
Test condition 3: 220 V AC 50 Hz supply varied across the Indian grid band 187 V to 253 V (±15%), 30 load steps.
Measured / specified value: Zero controller resets, zero arm drops, position memory retained at every step.
Comparison benchmark: Standard controllers without wide-range SMPS trip or reset beyond ±10% (198 V to 242 V).
Test condition 4: ASTM B117 neutral salt spray for 500 h, plus 96 h at 40 °C and 95% relative humidity (monsoon simulation).
Measured / specified value: No rust bloom on the housing, no condensation or fogging on the control PCB.
Comparison benchmark: Imported budget units usually carry a 240 h salt-spray rating.
Test condition 5: 6 m arm held against a 90 km/h gust applied at 45° to the arm, 100 repetitions.
Measured / specified value: Permanent deflection below 1 mm; no gearbox slip and no clutch re-setting required.
Comparison benchmark: Wind-tunnel data is rarely published by ODM suppliers; most quote only the arm length.
Test condition 6: Operating temperature envelope tested from −20 °C to +70 °C, 200 consecutive cycles at 55 °C.
Measured / specified value: No thermal cut-out, no speed drift beyond 5% at +55 °C.
Comparison benchmark: Heat derating is common above +45 °C on units without a brushless drive.
Classification :
PRODUCT DETAILS
Key Features
- Express brushless operation — adjustable opening from 0.6 s to 6 s with digital frequency conversion for smooth, silent movement.
- Continuous-duty design — rated for up to 5,000 cycles per day with an MCBF of 3 to 10 million cycles.
- Anti-collision safety — obstacle sensing, auto-rebound and manual override keep busy lanes safe.
- Flexible boom options — straight, folding and fence arms from 1 m to 12 m to suit toll lanes and wide entrances.
- Integration-ready — connects with ANPR/LPR cameras, RFID readers, loop detectors and cloud parking software.
- Weather-proof housing (IP54–IP66) with powder-coated steel body for year-round Indian conditions.
Specifications
| Credential Type | RFID Card, Code, Key, Smartphone, Other |
|---|---|
| Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, One-Way Audio, Attendance, Other |
| Storage | Cloud, Memory Card |
| Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China |
| Model Number | Ba-PDPY601 |
| Brand Name | Baroxon |
| Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day |
| Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

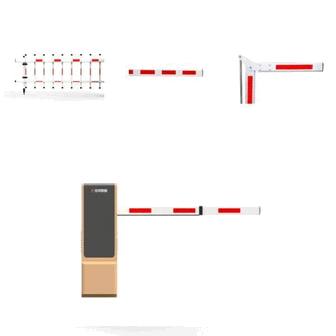

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Double/Triple rail) |
| Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W |
| MCBF | 3 million / 5 million / 10 million cycles |
| Housing Thickness | 2.0mm Cold-rolled Steel / Powder Coating |
| MTTR | < 30 minutes |
| Protection Class | IP54 / IP65 / IP66 |
| Package Size | 108.5X37X36 cm |
| Gross Weight | 30.200 kg |

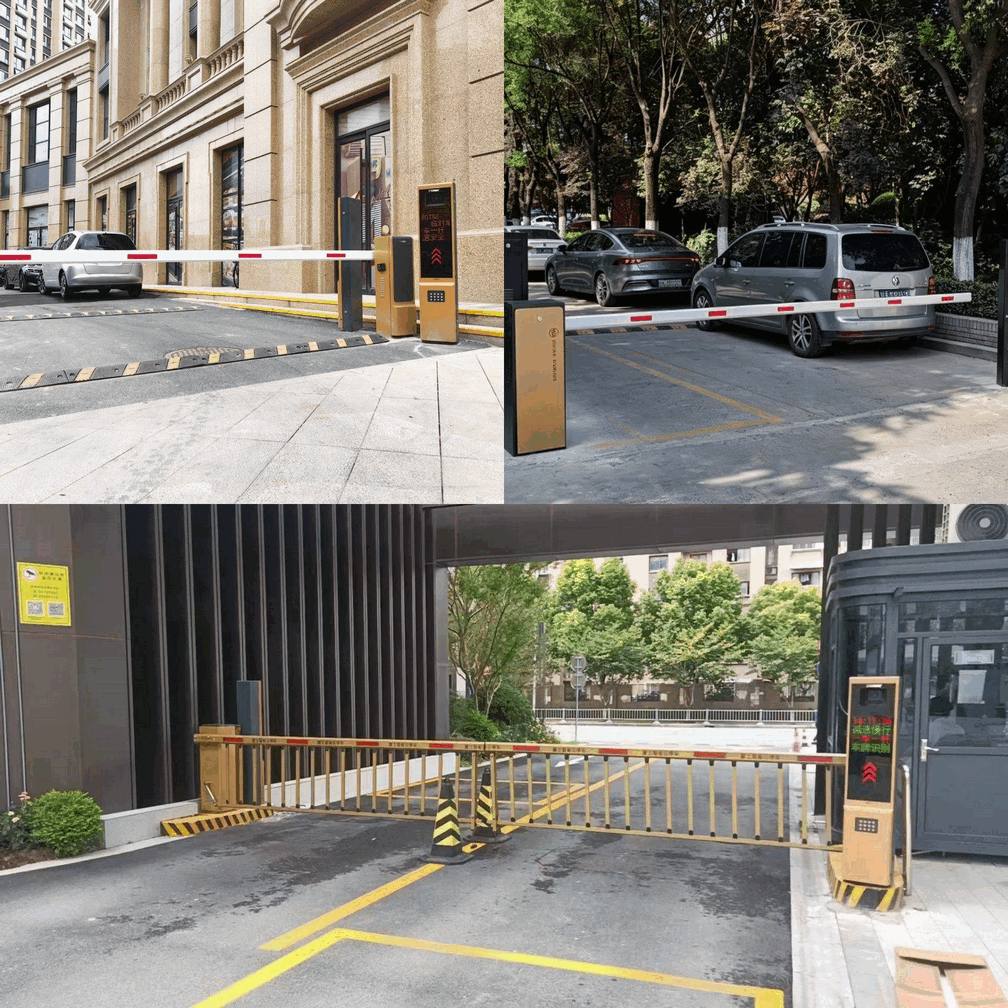

Applications
Highway and city toll plazas, commercial car parks, office campuses, hospitals, airports, metro stations and gated residential communities across India.
Product Video
Frequently Asked Questions
How fast can this barrier open?
The brushless drive provides adjustable opening from 0.6 seconds in express mode up to 6 seconds for long arms, so you can match lane throughput.
Can it handle peak-hour traffic volumes?
Yes. The continuous-duty motor is rated for up to 5,000 cycles per day, which covers the busiest commercial entrances.
Which access systems can be connected?
ANPR/LPR cameras, RFID and UHF readers, loop detectors, remote controls and cloud parking software are all supported.
What boom lengths are available?
Straight, folding and fence arms range from 1 m to 12 m depending on the model and site requirements.
Does it work in rain, heat and dust?
Yes. The housing is rated IP54–IP66 with an operating temperature range that suits all Indian climates.
