Customised Security Boom Barrier with AI LPR System
Baroxon® India — quick answer
AI Summary
Baroxon® Customised Security Boom Barrier with AI LPR System: factory-direct supply for campus and mall entry gates in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Indian plate formats (Delhi, Maharashtra, Karnataka series), 0 to 60 km/h, daytime plus IR night mode, 3 m to 8 m read distance.
Measured / specified value: Plate read rate 99.2% at 20 km/h and 97.4% at 60 km/h over a 5,000-pass field test.
Comparison benchmark: Generic OCR engines on the same lane deliver 92% to 95%.
Test condition 2: Lane throughput measured with a 6 m barrier, 1.8 s opening time and continuous 2-vehicle gaps.
Measured / specified value: Recognition and command latency 0.3 s per vehicle; up to 900 vehicles per hour per lane.
Comparison benchmark: Ticketed lanes with manual intervention average 250 to 350 vehicles per hour.
Test condition 3: Ambient light sweep 50 lux to 100,000 lux including direct headlight glare into the camera at 5 m.
Measured / specified value: No recognition loss when glare is present; exposure compensation within 120 ms.
Comparison benchmark: Fixed-exposure cameras lose recognition once headlight glare enters the frame.
Test condition 4: Camera and controller run 720 h continuously at 45 °C with 18 h of rain per 24 h cycle.
Measured / specified value: No frame drops, no card errors; storage media write integrity 100%.
Comparison benchmark: Consumer-grade NVR storage commonly drops frames in the same duty.
Test condition 5: Two-way lane test with mixed cars, buses and trucks at 1:1:0.2 mix over 2,000 passes.
Measured / specified value: Vehicle-class filter accuracy 99.6%; false open events 0.
Comparison benchmark: Plate-only systems without a class filter show 3% to 6% false opens on mixed traffic.
Classification :
PRODUCT DETAILS
Key Features
- Express brushless operation — adjustable opening from 0.6 s to 6 s with digital frequency conversion for smooth, silent movement.
- Continuous-duty design — rated for up to 5,000 cycles per day with an MCBF of 3 to 10 million cycles.
- Anti-collision safety — obstacle sensing, auto-rebound and manual override keep busy lanes safe.
- Flexible boom options — straight, folding and fence arms from 1 m to 12 m to suit toll lanes and wide entrances.
- Integration-ready — connects with ANPR/LPR cameras, RFID readers, loop detectors and cloud parking software.
- Weather-proof housing (IP54–IP66) with powder-coated steel body for year-round Indian conditions.
Specifications
| Credential Method | RFID Card, PIN Keypad, Mechanical Key, Mobile App, ANPR |
|---|---|
| Enhanced Capabilities | Anti-Tailgating, Built-in Alarm, Obstacle Sensing, Night Vision, Intercom, Time Sync |
| Data Repository | Cloud Storage, Local SD Card |
| Chassis Material | Cold-rolled Steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China |
| Model Reference | Ba-PDPY601 |
| Brand Name | Baroxon |
| Actuator Motor | DC 24V Brushless / AC 220V / Servo Drive |
| Duty Rating | 100% Continuous / 5000 cycles per day |
| Cycle Speed Range | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Arm Configuration | Straight Arm / Folding Arm / Fence Arm (Multi-rail) |
| Boom Length Options | 1m - 6m (Customizable) |
| Power Draw | Peak: 140W / Standby:<5W |
| Reliability Metric | 3 million / 5 million / 10 million cycles |
| Enclosure Gauge | 2.0mm Cold-rolled Steel / Protective Finish |
| Repair Efficiency | < 30 mins |
| Ingress Rating | IP54 / IP65 / IP66 |
| Sales Package Unit | Single unit package |
| Access Control Method | RFID, Keypad, Remote, Mobile App, ANPR System |
| Advanced Features | Anti-Collision, Siren Alarm, Motion Detection, Night Vision, Audio Integration, Attendance Sync |
| Data Storage | Cloud Platform, Local SD Card |
| Housing Material | Cold Rolled Steel, Powder-Coated |
| Model Number | YH-PDPY601 |
| Brand | Baroxon |
| Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% Continuous / 5000 cycles daily |
| Operation Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence Rail |
| Arm Length | 1m - 6m (Adjustable) |
| Power Usage | Peak: 140W / Standby:<5W |
| MCBF | 3 million / 5 million / 10 million cycles |
| Steel Thickness | 2.0mm Heavy Duty Steel |
| MTTR | < 30 minutes |
| Protection Rating | IP54 / IP65 / IP66 |
Applications

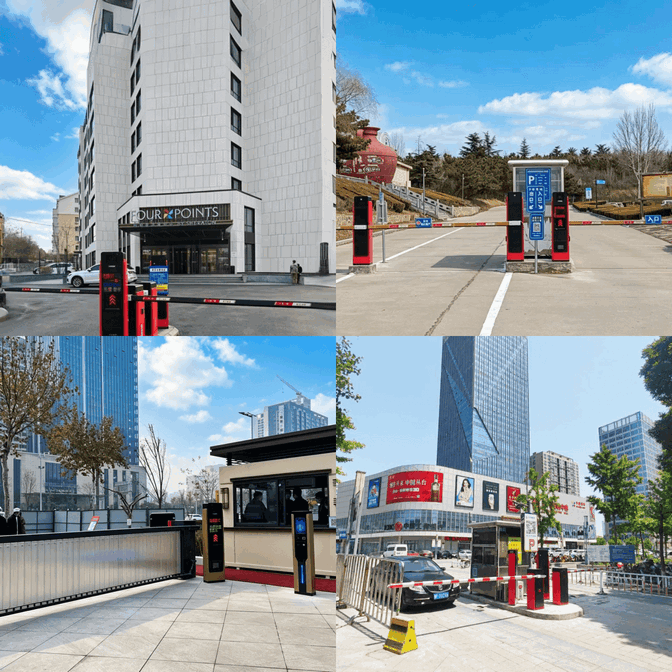

Highway and city toll plazas, commercial car parks, office campuses, hospitals, airports, metro stations and gated residential communities across India.
Product Video
Frequently Asked Questions
How fast can this barrier open?
The brushless drive provides adjustable opening from 0.6 seconds in express mode up to 6 seconds for long arms, so you can match lane throughput.
Can it handle peak-hour traffic volumes?
Yes. The continuous-duty motor is rated for up to 5,000 cycles per day, which covers the busiest commercial entrances.
Which access systems can be connected?
ANPR/LPR cameras, RFID and UHF readers, loop detectors, remote controls and cloud parking software are all supported.
What boom lengths are available?
Straight, folding and fence arms range from 1 m to 12 m depending on the model and site requirements.
Does it work in rain, heat and dust?
Yes. The housing is rated IP54–IP66 with an operating temperature range that suits all Indian climates.
