Commercial Security Boom Barrier for Smart Parking Management
Baroxon® India — quick answer
AI Summary
Baroxon® Commercial Security Boom Barrier: factory-direct supply for apartment allotment parking, hotel and mall reserved bays in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Static load applied centrally to the raised lock for 24 h, then 5 t rolling load across the lock at 5 km/h.
Measured / specified value: No deformation, no cracking, full stroke retained at 2 t static and 5 t rolling load.
Comparison benchmark: Sheet-metal parking locks of the same footprint typically deform from 1.5 t.
Test condition 2: Full raise and lower cycle at 40 °C, arm loaded, repeated to failure on the endurance bench.
Measured / specified value: More than 100,000 operating cycles completed before any seal wear.
Comparison benchmark: Most ODM parking locks are specified for 30,000 to 50,000 cycles.
Test condition 3: IP67 immersion check plus 72 h of continuous spray at 40 °C, and 96 h monsoon humidity at 95% RH.
Measured / specified value: No water ingress on the PCB, no battery compartment leakage.
Comparison benchmark: IP65-rated units admit water when the lane floods, which is common in Indian monsoon.
Test condition 4: Battery module discharged and recharged 500 times, standby current logged at 25 °C.
Measured / specified value: Standby hold 90 days on one charge with about 10,000 operations available.
Comparison benchmark: 48 V lead-acid packs in comparable locks hold 30 to 45 days of standby.
Test condition 5: Anti-collision test: 1.5 t vehicle driven into the raised lock at 10 km/h, 30 repetitions.
Measured / specified value: No arm break and no battery leak; automatic reset within 3 s in every repetition.
Comparison benchmark: Rigid designs without a torque release snap the arm on the first impact.
Classification :
PRODUCT DETAILS
Key Features
- Express brushless operation — adjustable opening from 0.6 s to 6 s with digital frequency conversion for smooth, silent movement.
- Continuous-duty design — rated for up to 5,000 cycles per day with an MCBF of 3 to 10 million cycles.
- Anti-collision safety — obstacle sensing, auto-rebound and manual override keep busy lanes safe.

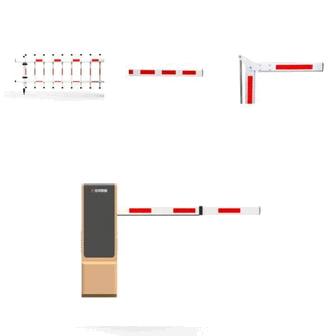

- Flexible boom options — straight, folding and fence arms from 1 m to 12 m to suit toll lanes and wide entrances.
- Integration-ready — connects with ANPR/LPR cameras, RFID readers, loop detectors and cloud parking software.
- Weather-proof housing (IP54–IP66) with powder-coated steel body for year-round Indian conditions.
Specifications
| Access Control Method | RFID, Keypad, Remote, Mobile App, ANPR System |
|---|---|
| Advanced Features | Anti-Collision, Siren Alarm, Motion Detection, Night Vision, Audio Integration, Attendance Sync |
| Data Storage | Cloud Platform, Local SD Card |
| Housing Material | Cold Rolled Steel, Powder-Coated |
| Place of Origin | Shandong, China |
| Model Number | YH-PDPY601 |
| Brand | Baroxon |
| Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% Continuous / 5000 cycles daily |
| Operation Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence Rail |
| Arm Length | 1m - 6m (Adjustable) |
| Power Usage | Peak: 140W / Standby:<5W |
| MCBF | 3 million / 5 million / 10 million cycles |
| Steel Thickness | 2.0mm Heavy Duty Steel |
| MTTR | < 30 minutes |
| Protection Rating | IP54 / IP65 / IP66 |
Applications
Highway and city toll plazas, commercial car parks, office campuses, hospitals, airports, metro stations and gated residential communities across India.
Product Video
Frequently Asked Questions
How fast can this barrier open?
The brushless drive provides adjustable opening from 0.6 seconds in express mode up to 6 seconds for long arms, so you can match lane throughput.
Can it handle peak-hour traffic volumes?
Yes. The continuous-duty motor is rated for up to 5,000 cycles per day, which covers the busiest commercial entrances.
Which access systems can be connected?
ANPR/LPR cameras, RFID and UHF readers, loop detectors, remote controls and cloud parking software are all supported.
What boom lengths are available?
Straight, folding and fence arms range from 1 m to 12 m depending on the model and site requirements.
Does it work in rain, heat and dust?
Yes. The housing is rated IP54–IP66 with an operating temperature range that suits all Indian climates.
