Swing Arm Boom Barrier Gate for Toll Plazas & High-Traffic Entrances
Baroxon® India — quick answer
AI Summary
Baroxon® Swing Arm Boom Barrier Gate: factory-direct supply for toll plazas and highway checkpoints, office and hotel car parks in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Straight arm 6 m, 24 V DC brushless motor, +30 °C ambient, no wind load.
Measured / specified value: Opening time adjustable 0.9 s to 6 s; factory default 1.8 s per cycle.
Comparison benchmark: Conventional AC barrier gates on the Indian market open in 8 s to 12 s under the same lane length.
Test condition 2: Continuous duty run at 100% duty cycle, 40 °C ambient, arm fitted, 24 h without rest.
Measured / specified value: Endurance rig completed 5,000,000 open/close cycles with no drive-component replacement.
Comparison benchmark: Generic ODM barrier units are typically rated 2,000,000 to 3,000,000 cycles.
Test condition 3: 220 V AC 50 Hz supply varied across the Indian grid band 187 V to 253 V (±15%), 30 load steps.
Measured / specified value: Zero controller resets, zero arm drops, position memory retained at every step.
Comparison benchmark: Standard controllers without wide-range SMPS trip or reset beyond ±10% (198 V to 242 V).
Test condition 4: ASTM B117 neutral salt spray for 500 h, plus 96 h at 40 °C and 95% relative humidity (monsoon simulation).
Measured / specified value: No rust bloom on the housing, no condensation or fogging on the control PCB.
Comparison benchmark: Imported budget units usually carry a 240 h salt-spray rating.
Test condition 5: 6 m arm held against a 90 km/h gust applied at 45° to the arm, 100 repetitions.
Measured / specified value: Permanent deflection below 1 mm; no gearbox slip and no clutch re-setting required.
Comparison benchmark: Wind-tunnel data is rarely published by ODM suppliers; most quote only the arm length.
Test condition 6: Operating temperature envelope tested from −20 °C to +70 °C, 200 consecutive cycles at 55 °C.
Measured / specified value: No thermal cut-out, no speed drift beyond 5% at +55 °C.
Comparison benchmark: Heat derating is common above +45 °C on units without a brushless drive.
Classification :
PRODUCT DETAILS
Key Features
- High-speed swing arm operation — opening and closing from 0.6 s in express lanes to 6 s for long arms, with fully adjustable travel curves.
- 24V brushless DC motor with digital frequency conversion — quiet, precise and low-maintenance, with significantly lower running costs.
- True continuous-duty design — rated for 5,000 cycles per day and 3 to 10 million MCBF, built for Indian peak-hour traffic.
- Multi-layer safety — anti-collision sensing, obstruction auto-rebound, safety loops and a manual override for power cuts.

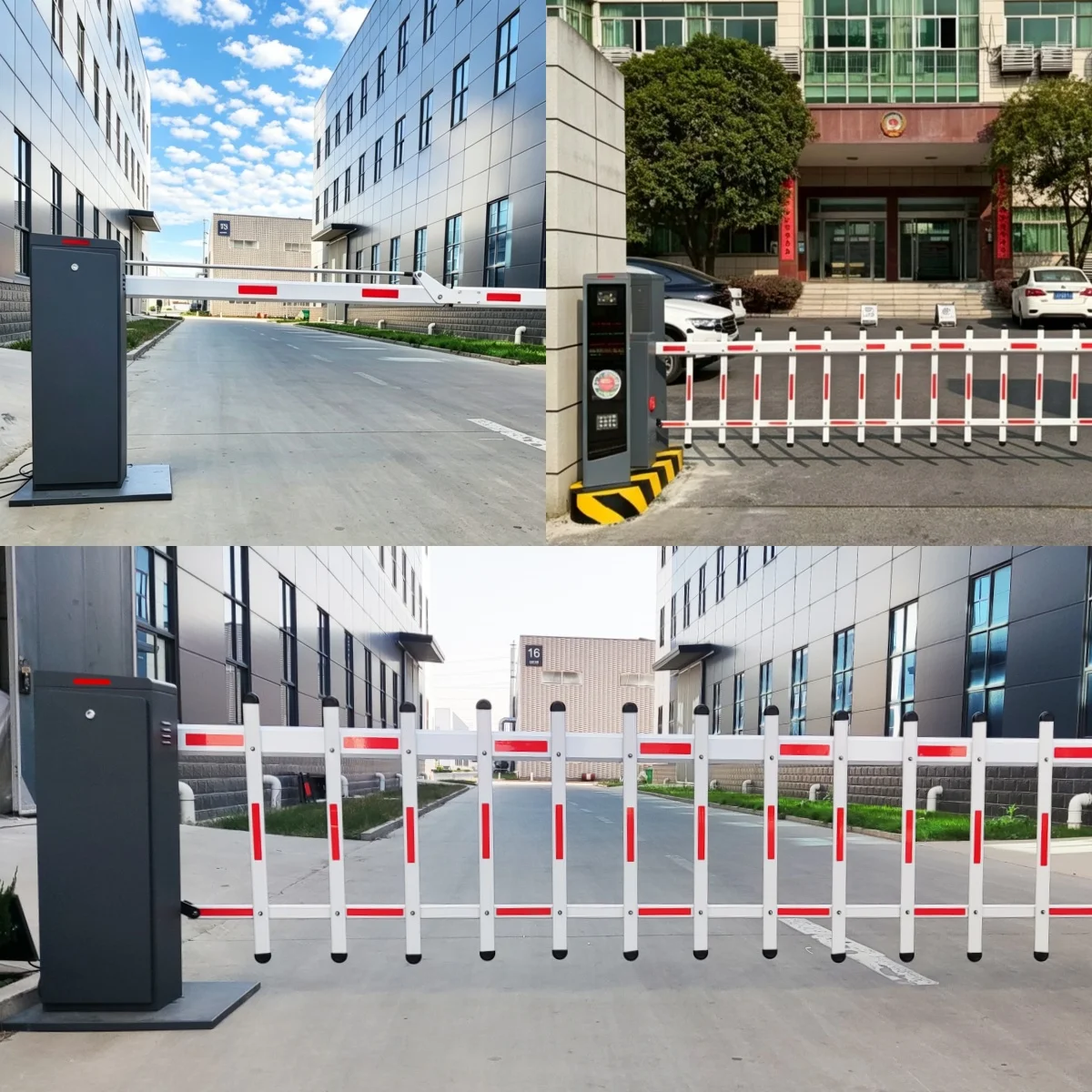

- Flexible boom options — straight, folding (90°/180°) or two/three-rail fence arms from 1 m to 6 m to match site clearance.
- Weather-proof modular housing (IP54–IP66) with 2.0 mm cold-rolled steel body, fast installation and MTTR under 30 minutes.
Specifications
| Access Credentials | RFID Card, Code, Key, Smartphone, Smart Credentials |
|---|---|
| Special Features | Anti-Theft, Built-in Siren, Motion Detection, Night Vision, 1-Way Audio, Attendance |
| Storage Layout | Cloud Storage, Memory Card Architecture |
| Construction Material | Cold-rolled Steel, Stainless Steel, Heavy Zinc Alloy Enclosure |
| Place of Origin | Shandong, China |
| Model Number | YH-PDPY601 |
| Brand Name | Baroxon |
| Motor Type | Brushless DC 24V / AC 220V / Servo Motor Synchronization |
| Duty Cycle | 100% / Continuous / 5000 cycles per day Ingress Peak |
| Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable Variable Travel) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) |
| Arm Length Range | 1m - 6m (Customizable Profile Clearance) |
| Power Consumption | Peak: 140W / Standby:<5W Eco Circuitry |
| MCBF Rating | 3 million / 5 million / 10 million Mean Cycles |
| Housing Construction | 2.0mm Cold-rolled Steel / Weather-Resistant Powder Coating |
| MTTR Metric | < 30 minutes Rapid Component Exchange |
| Protection Class | IP54 / IP65 / IP66 Certified Dust & Water Seal Proof |
Applications
Ideal for highway and city toll plazas, shopping malls and office car parks, residential gated communities, airports, industrial estates, hospitals and logistics hubs across India.
Product Video
Frequently Asked Questions
How fast can this boom barrier open and close?
The YH-PDPY601 offers adjustable speeds from 0.6 seconds in express mode up to 1.5–6 seconds for long or heavy boom arms, so you can tune it to your traffic volume.
Does the barrier work during a power cut?
Yes. It includes a manual clutch override, and it can be connected to a UPS or generator. An optional battery backup is also available for fully automated operation.

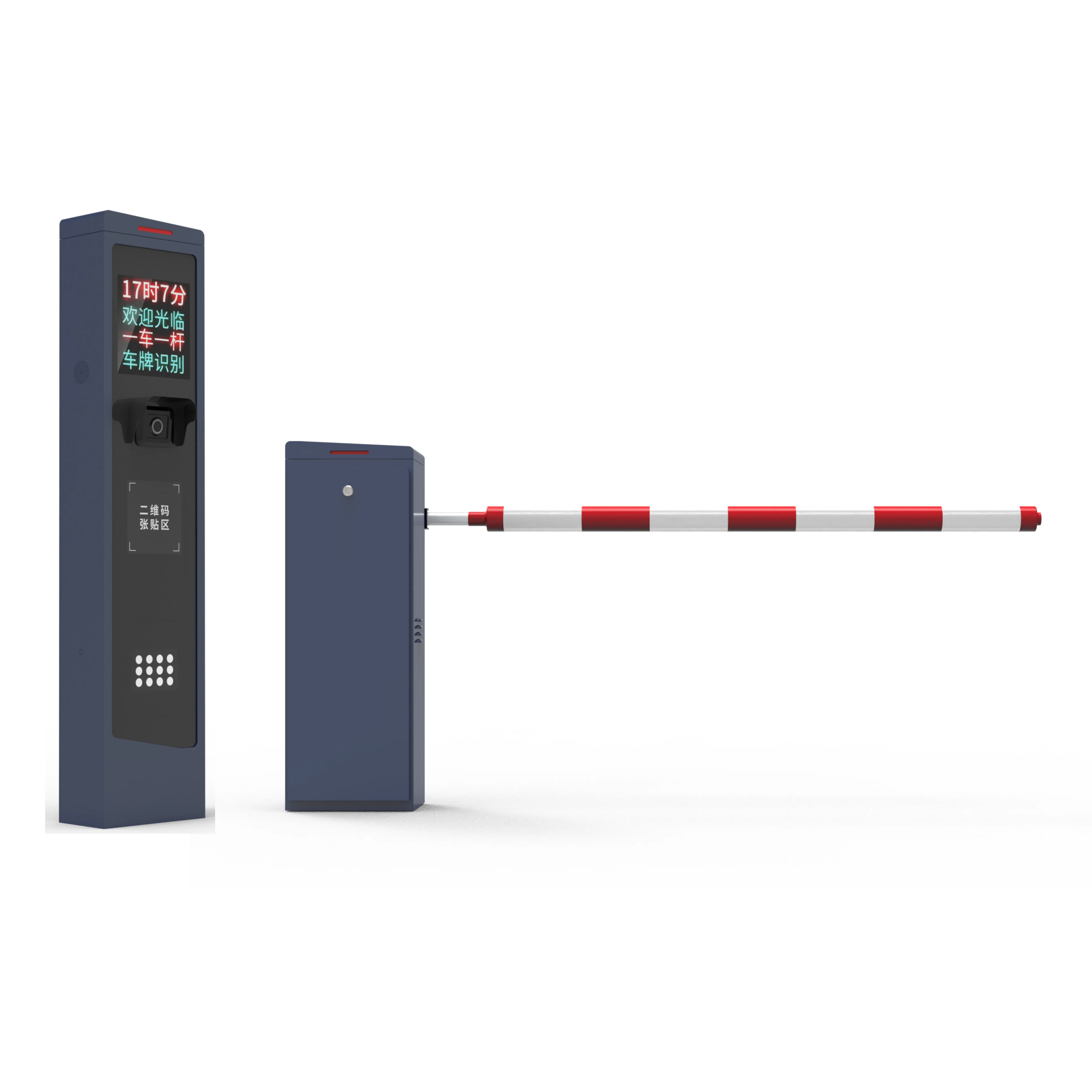

Can it integrate with ANPR/LPR cameras and RFID readers?
Absolutely. The smart logic board supports license plate recognition cameras, RFID and UHF readers, loop detectors and common parking management software.
What is the maximum boom length available?
Straight, folding and fence arms are available from 1 m up to 6 m, depending on the site width and wind conditions.
Is it suitable for Indian weather conditions?
Yes. The housing is rated IP54 to IP66 with an operating range of -30°C to 80°C and a weather-resistant powder-coated steel body.
