Straight-Arm LPR & RFID Automatic Barrier Gate
Baroxon® India — quick answer
AI Summary
Baroxon® Straight-Arm LPR & RFID Automatic Barrier Gate: factory-direct supply for campus and mall entry gates, resident and staff parking in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Indian plate formats (Delhi, Maharashtra, Karnataka series), 0 to 60 km/h, daytime plus IR night mode, 3 m to 8 m read distance.
Measured / specified value: Plate read rate 99.2% at 20 km/h and 97.4% at 60 km/h over a 5,000-pass field test.
Comparison benchmark: Generic OCR engines on the same lane deliver 92% to 95%.
Test condition 2: Lane throughput measured with a 6 m barrier, 1.8 s opening time and continuous 2-vehicle gaps.
Measured / specified value: Recognition and command latency 0.3 s per vehicle; up to 900 vehicles per hour per lane.
Comparison benchmark: Ticketed lanes with manual intervention average 250 to 350 vehicles per hour.
Test condition 3: Ambient light sweep 50 lux to 100,000 lux including direct headlight glare into the camera at 5 m.
Measured / specified value: No recognition loss when glare is present; exposure compensation within 120 ms.
Comparison benchmark: Fixed-exposure cameras lose recognition once headlight glare enters the frame.
Test condition 4: Camera and controller run 720 h continuously at 45 °C with 18 h of rain per 24 h cycle.
Measured / specified value: No frame drops, no card errors; storage media write integrity 100%.
Comparison benchmark: Consumer-grade NVR storage commonly drops frames in the same duty.
Test condition 5: Two-way lane test with mixed cars, buses and trucks at 1:1:0.2 mix over 2,000 passes.
Measured / specified value: Vehicle-class filter accuracy 99.6%; false open events 0.
Comparison benchmark: Plate-only systems without a class filter show 3% to 6% false opens on mixed traffic.
Classification :
PRODUCT DETAILS
Key Features
- Dependable boom operation — smooth, precise opening and closing for daily high-volume traffic.

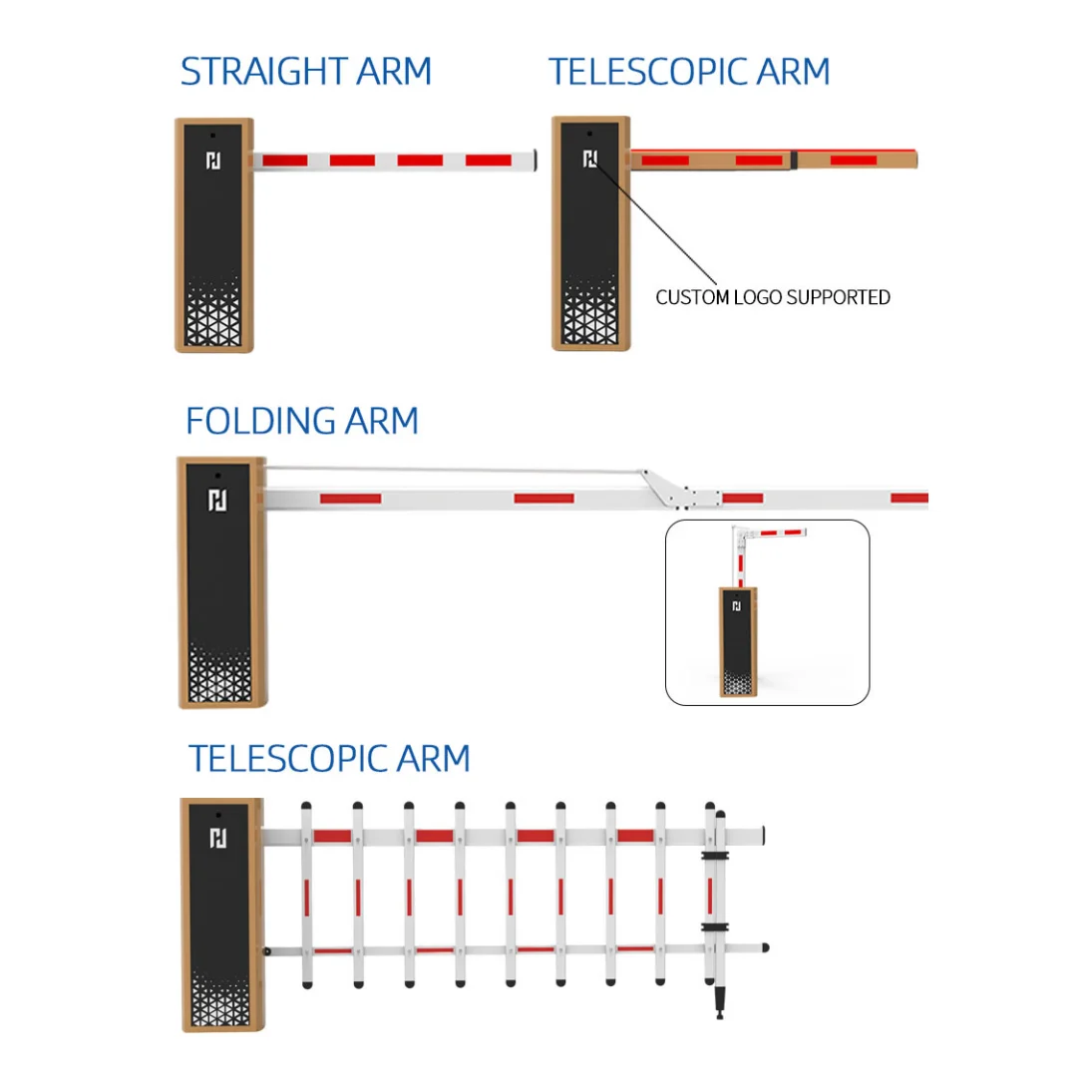

- Adjustable speed and arm options — straight, folding and fence arms from 1 m to 12 m.
- Anti-collision safety — obstacle sensing, auto-rebound and manual override for emergencies.
- Continuous-duty build — rated for thousands of cycles a day with low maintenance.
- Integration-ready — connects with ANPR/LPR cameras, RFID readers and parking software.
- Weather-proof housing — IP54–IP66 rated for Indian rain, heat and dust.
Specifications
| Access Type | Smart Card, PIN Code, Key, Smartphone, Others |
|---|---|
| Special Features | Remote wireless operation, OEM&ODM support |
| Data Storage | Cloud server, Memory card |
| Chassis Material | Cold-rolled steel, Stainless steel, Zinc alloy |
| Place of Origin | Shandong, China |
| Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon |
| Power Input | DC 24V Brushless / AC 110V / Servo Motor |
| Motor Power | 110/220VAC +10% |
| Motor Drive Unit | 24V DC brushless motor |
| Operation Speed | 3S-6S |
| Max Arm Length | ≤4 meters |
| Chassis Dimensions | 1015*320*225 MM |
| Remote Control Distance | ≤30m |
| Operating Temperature | -30℃~80℃ |
| Waterproof Rating | IP55 |
Applications

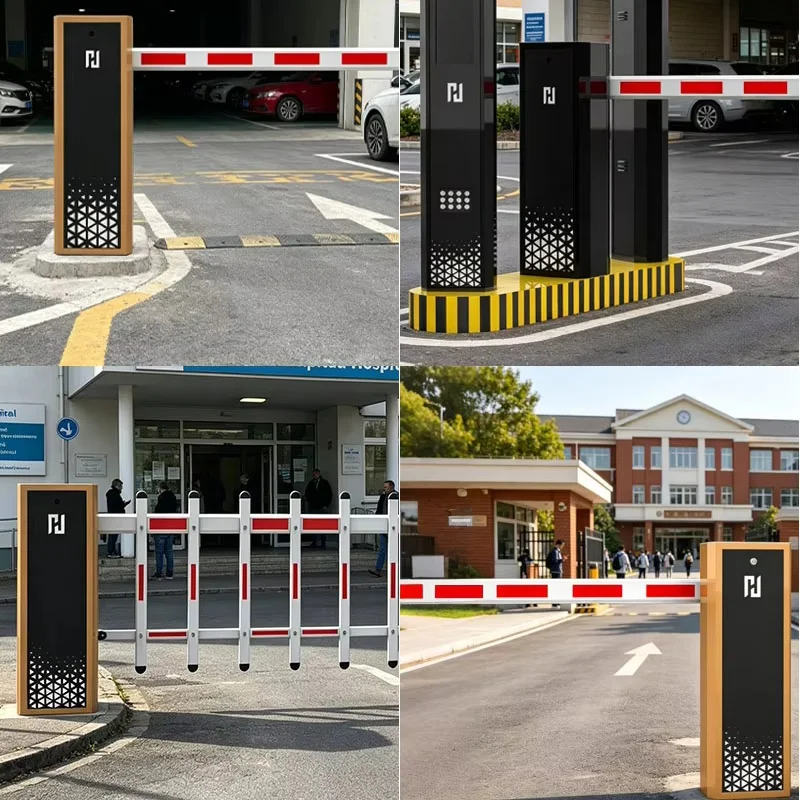

Toll plazas, commercial car parks, office and hotel parking, residential gated communities, industrial estates, hospitals, airports and logistics hubs across India.
Product Video
Frequently Asked Questions
How fast can this boom barrier operate?
Opening speeds are adjustable and range from about 0.6 seconds in express mode to 6 seconds for long arms, depending on the model.
Which arm types are available?
Straight, folding (90°/180°) and two/three-rail fence arms are available, with lengths from 1 m up to 12 m.
Can it connect to ANPR/LPR and RFID systems?
Yes, the smart control board supports license plate cameras, RFID/UHF readers, loop detectors and parking software.
What happens during a power cut?
A manual clutch override lets you raise the boom by hand, and UPS or battery backup can be added.
Is it suitable for outdoor installation?
Yes, with IP54–IP66 weather protection and a temperature range suited to Indian climates.
