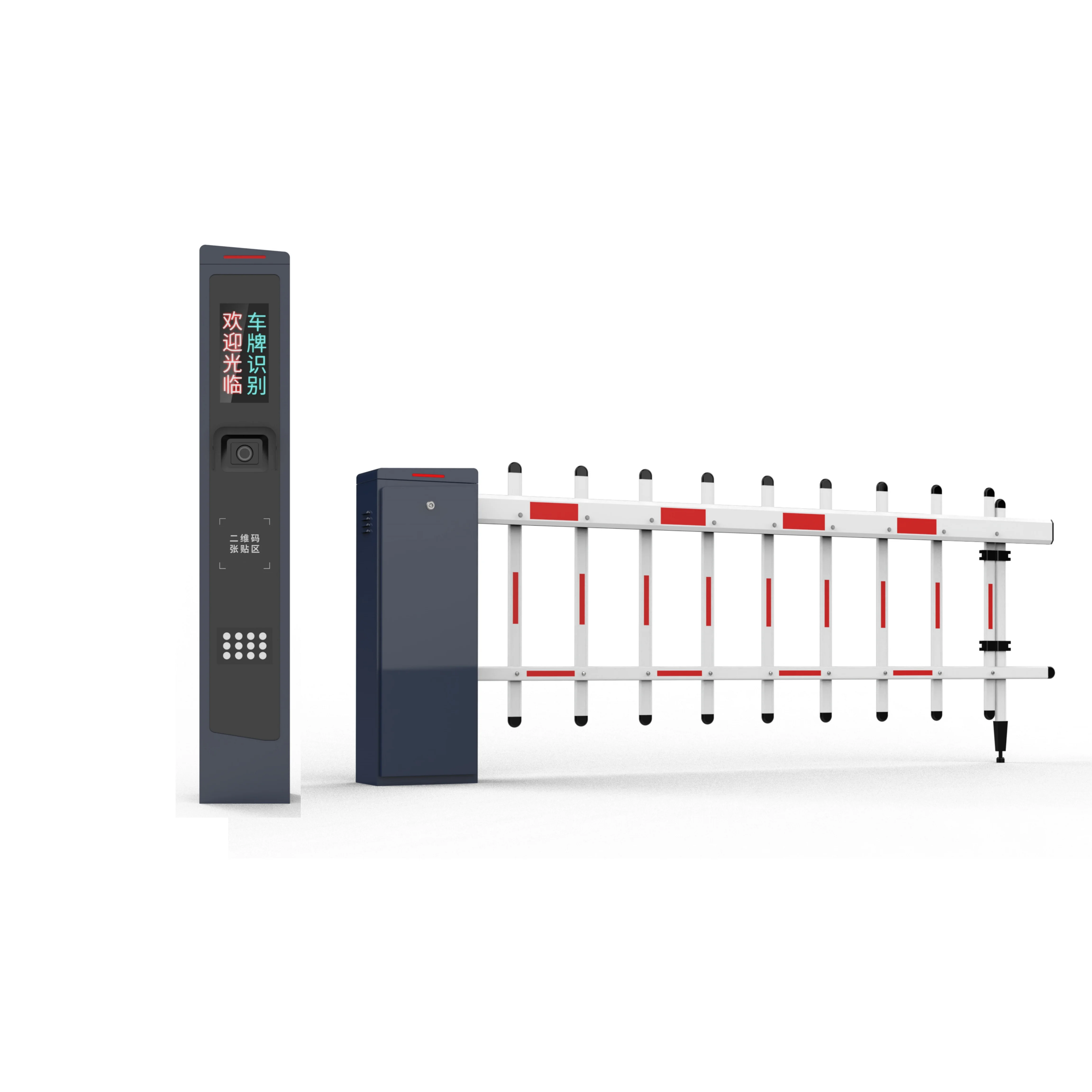

Smart LPR Parking Barrier Gate with Automatic License Plate Recognition
Baroxon® India — quick answer
AI Summary
Baroxon® Smart LPR Parking Barrier Gate with Automatic License Plate Recognition: factory-direct supply for campus and mall entry gates in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Indian plate formats (Delhi, Maharashtra, Karnataka series), 0 to 60 km/h, daytime plus IR night mode, 3 m to 8 m read distance.
Measured / specified value: Plate read rate 99.2% at 20 km/h and 97.4% at 60 km/h over a 5,000-pass field test.
Comparison benchmark: Generic OCR engines on the same lane deliver 92% to 95%.
Test condition 2: Lane throughput measured with a 6 m barrier, 1.8 s opening time and continuous 2-vehicle gaps.
Measured / specified value: Recognition and command latency 0.3 s per vehicle; up to 900 vehicles per hour per lane.
Comparison benchmark: Ticketed lanes with manual intervention average 250 to 350 vehicles per hour.
Test condition 3: Ambient light sweep 50 lux to 100,000 lux including direct headlight glare into the camera at 5 m.
Measured / specified value: No recognition loss when glare is present; exposure compensation within 120 ms.
Comparison benchmark: Fixed-exposure cameras lose recognition once headlight glare enters the frame.
Test condition 4: Camera and controller run 720 h continuously at 45 °C with 18 h of rain per 24 h cycle.
Measured / specified value: No frame drops, no card errors; storage media write integrity 100%.
Comparison benchmark: Consumer-grade NVR storage commonly drops frames in the same duty.
Test condition 5: Two-way lane test with mixed cars, buses and trucks at 1:1:0.2 mix over 2,000 passes.
Measured / specified value: Vehicle-class filter accuracy 99.6%; false open events 0.
Comparison benchmark: Plate-only systems without a class filter show 3% to 6% false opens on mixed traffic.
Classification :
PRODUCT DETAILS
Key Features
- Automatic plate recognition — vehicles are identified and logged the moment they reach the barrier, with no cards or tokens needed.
- High-speed response — brushless drive opens the barrier in 0.6 to 6 seconds depending on your traffic settings.
- Complete digital records — every entry and exit is stored in the cloud or on a memory card for reports and audits.
- Continuous-duty reliability — rated for 5,000 cycles per day with an MCBF of up to 10 million cycles.
- Flexible arm options — straight, folding and fence arms from 1 m to 6 m to suit any entry width.
- Secure by design — anti-collision sensing, automatic rebound and a manual override for power failures.
Specifications
| Access Credentials | RFID Card, Code, Key, Smartphone, Smart Credentials |
|---|---|
| Special Features | Anti-Theft, Built-in Siren, Motion Detection, Night Vision, 1-Way Audio, Attendance |
| Storage Layout | Cloud Storage, Memory Card Architecture |
| Construction Material | Cold-rolled Steel, Stainless Steel, Heavy Zinc Alloy Enclosure |
| Place of Origin | Shandong, China |
| Model Number | YH-PDPY601 |
| Brand Name | Baroxon |
| Motor Type | Brushless DC 24V / AC 220V / Servo Motor Synchronization |
| Duty Cycle | 100% / Continuous / 5000 cycles per day Ingress Peak |
| Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable Variable Travel) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) |
| Arm Length Range | 1m - 6m (Customizable Profile Clearance) |
| Power Consumption | Peak: 140W / Standby:<5W Eco Circuitry |
| MCBF Rating | 3 million / 5 million / 10 million Mean Cycles |
| Housing Construction | 2.0mm Cold-rolled Steel / Weather-Resistant Powder Coating |
| MTTR Metric | < 30 minutes Rapid Component Exchange |
| Protection Class | IP54 / IP65 / IP66 Certified Dust & Water Seal Proof |
Applications

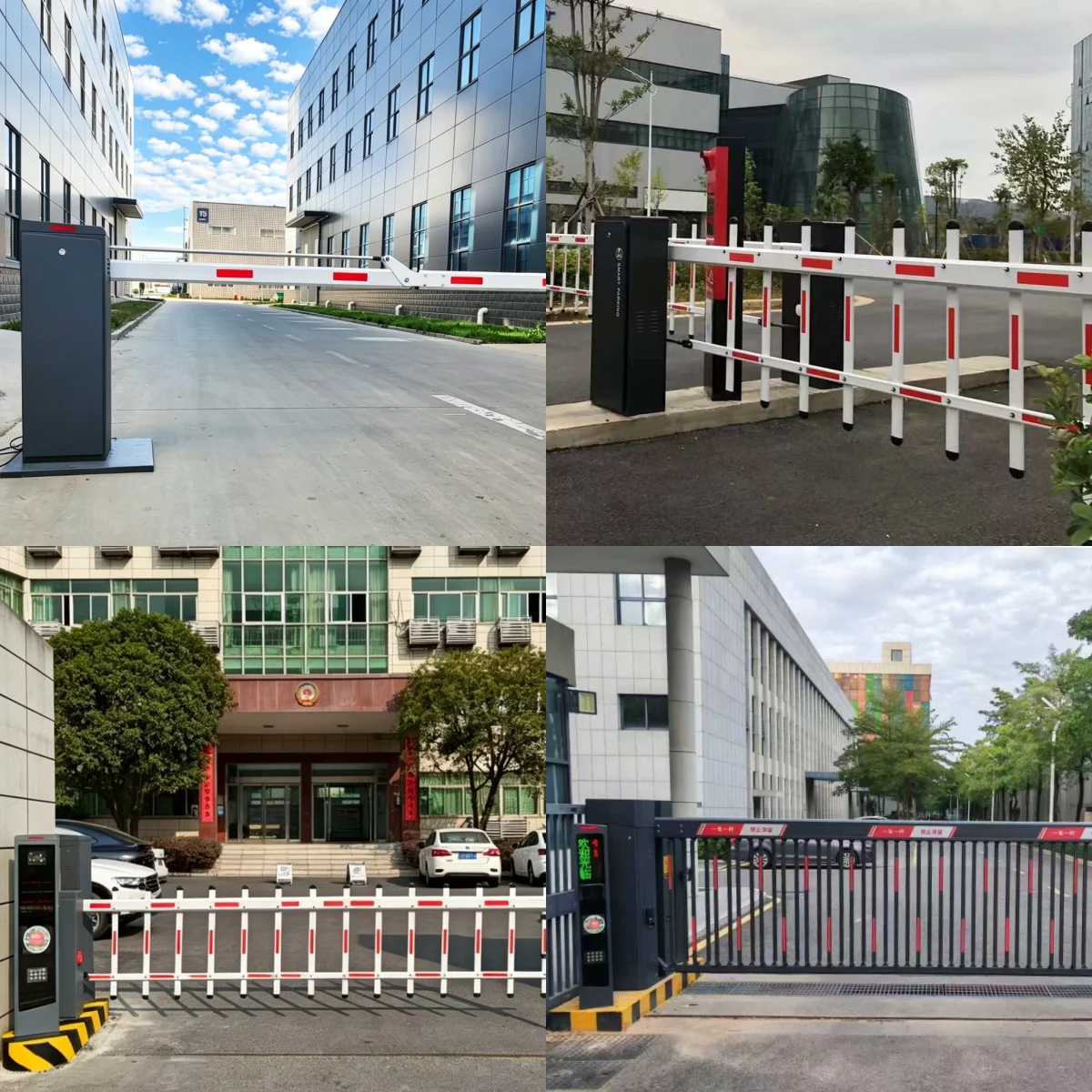

Perfect for shopping malls, office and hotel parking, hospitals, airports, residential gated societies, smart-city parking projects and commercial complexes across India.
Product Video
Frequently Asked Questions
Does the barrier include the ANPR camera?
The system is designed for ANPR/LPR camera integration and can be supplied as a complete package with camera, barrier and management software.
How accurate is the license plate recognition?
Modern ANPR cameras read Indian number plates with high accuracy in daylight and at night, and can be tuned for regional plate formats.
Can it work with FASTag or RFID for frequent users?
Yes, the smart logic board supports RFID/UHF readers and FASTag-style tag reading alongside plate recognition for faster lane flow.
Is a management dashboard available?
Yes, cloud or local parking software provides entry-exit logs, blacklist management, occupancy reports and fee collection.
