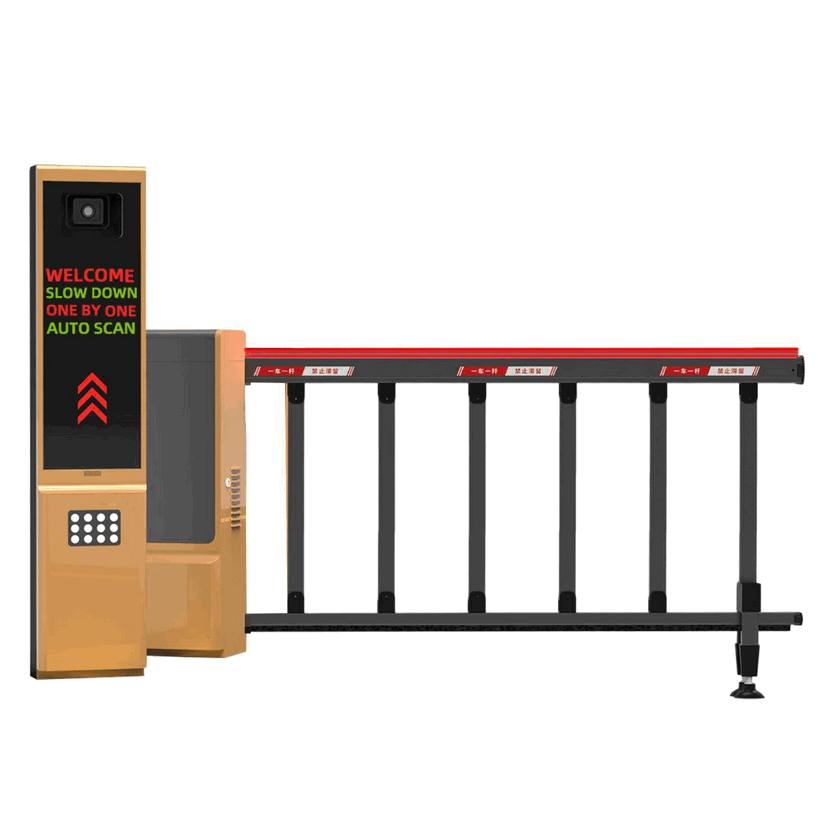

Smart DC Motor Driveway Barrier Gate System
Baroxon® India — quick answer
AI Summary
Baroxon® Smart DC Motor Driveway Barrier Gate System: factory-direct supply for campus and mall entry gates, resident and staff parking in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Indian plate formats (Delhi, Maharashtra, Karnataka series), 0 to 60 km/h, daytime plus IR night mode, 3 m to 8 m read distance.
Measured / specified value: Plate read rate 99.2% at 20 km/h and 97.4% at 60 km/h over a 5,000-pass field test.
Comparison benchmark: Generic OCR engines on the same lane deliver 92% to 95%.
Test condition 2: Lane throughput measured with a 6 m barrier, 1.8 s opening time and continuous 2-vehicle gaps.
Measured / specified value: Recognition and command latency 0.3 s per vehicle; up to 900 vehicles per hour per lane.
Comparison benchmark: Ticketed lanes with manual intervention average 250 to 350 vehicles per hour.
Test condition 3: Ambient light sweep 50 lux to 100,000 lux including direct headlight glare into the camera at 5 m.
Measured / specified value: No recognition loss when glare is present; exposure compensation within 120 ms.
Comparison benchmark: Fixed-exposure cameras lose recognition once headlight glare enters the frame.
Test condition 4: Camera and controller run 720 h continuously at 45 °C with 18 h of rain per 24 h cycle.
Measured / specified value: No frame drops, no card errors; storage media write integrity 100%.
Comparison benchmark: Consumer-grade NVR storage commonly drops frames in the same duty.
Test condition 5: Two-way lane test with mixed cars, buses and trucks at 1:1:0.2 mix over 2,000 passes.
Measured / specified value: Vehicle-class filter accuracy 99.6%; false open events 0.
Comparison benchmark: Plate-only systems without a class filter show 3% to 6% false opens on mixed traffic.
Classification :
PRODUCT DETAILS
Key Features
- Accurate plate recognition — reads Indian number plates day and night, in rain and low light, with high recognition rates.
- Touch-free operation — vehicles are identified and logged automatically with no cards, tokens or driver action.
- Complete digital records — every entry and exit is stored in the cloud or on a memory card for reports and audits.
- Seamless barrier integration — connects to boom barriers, flap barriers and parking gates via standard protocols.
- Smart management — blacklist alerts, occupancy reports, fee collection and remote monitoring included.
- Easy installation — compact camera-terminal design for gantries, entry lanes and retrofit projects.
Specifications
| Access Technology | Card, Code, Key, Smartphone, RFID, UHF |
|---|---|
| Advanced Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, Time & Attendance, Auto-Rebound |
| Data Storage | Cloud, Memory Card |
| Cabinet Chassis Material | Cold-rolled Steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China |
| Model Designator | YH-PDPY601 |
| Manufacturer Brand | Baroxon |
| Motor Drive Type | DC 24V Brushless / AC 220V / Servo Motor |
| Operational Duty Cycle | 100% / Continuous / 5000 cycles per day |
| Travel Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Options | Straight / Folding (90°/180°) / Fence (Two/Three-rail) |
| Arm Span Length | 1m - 6m (Customizable) |
| Power Draw | Peak: 140W / Standby:<5W |
| MCBF Reliability | 3 million / 5 million / 10 million times |
| Housing Structure | 2.0mm Cold-rolled Steel / Powder Coating |
| MTTR Value | < 30 mins |
| Weatherproofing Class | IP54 / IP65 / IP66 |
| Selling Unit Type | Single item per reinforced wooden pallet |
Applications

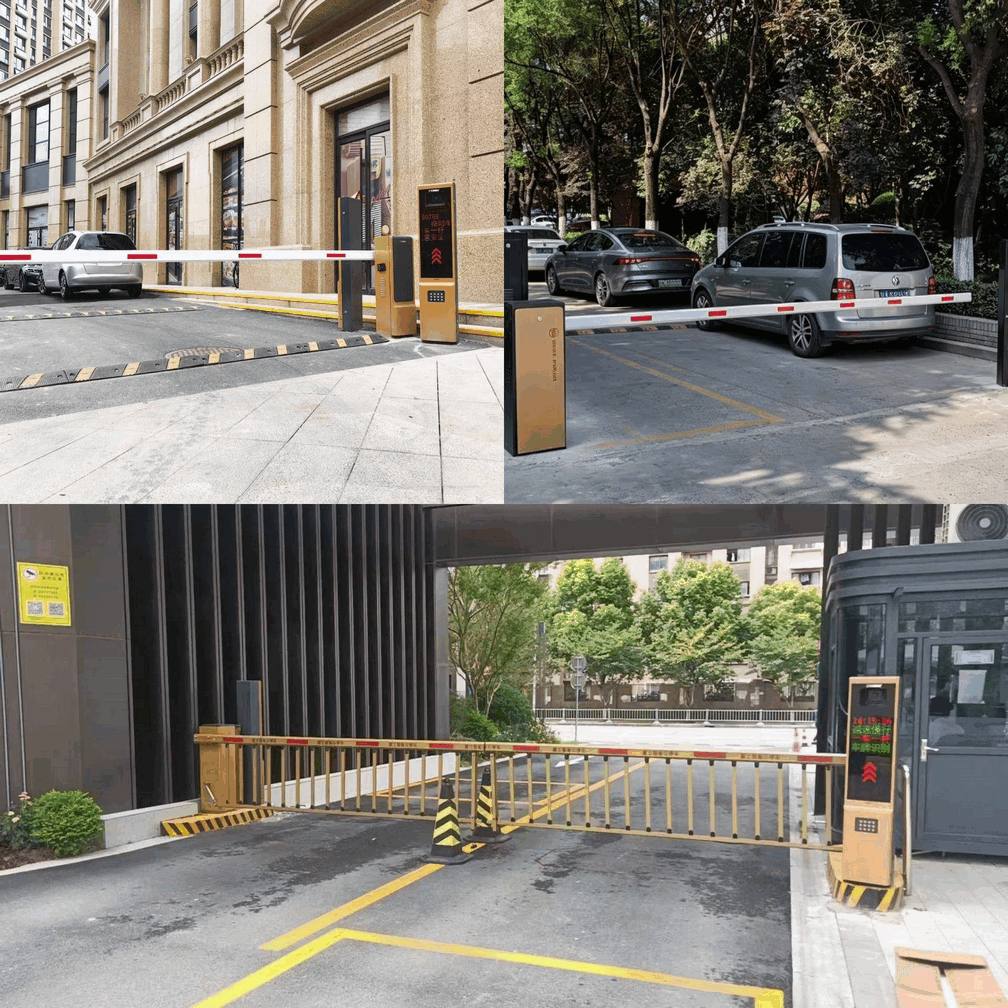

Shopping malls, office and hotel parking, hospitals, airports, residential gated societies, smart-city parking projects and commercial complexes across India.
Product Video
Frequently Asked Questions
Does it recognise Indian number plates?
Yes, the recognition engine is tuned for diverse Indian plate fonts and formats, and works in daylight, night, rain and low-light conditions.
Does the package include the camera and the barrier?
It can be supplied as a complete package with camera, terminal, boom barrier and management software, or as a standalone camera system.
Can it work without internet?
Yes. Records are stored on a memory card locally and can sync to the cloud when connectivity is available.
Can it integrate with FASTag or RFID?
Yes, the system supports RFID/UHF readers alongside plate recognition for frequent users and faster lane flow.
Is a management dashboard available?
Cloud or local software provides entry-exit logs, blacklist management, occupancy reports and fee collection.
