Intelligent Boom Barrier with LPR, Digital Payment & Self-Service Kiosk
Baroxon® India — quick answer
AI Summary
Baroxon® Intelligent Boom Barrier with LPR, Digital Payment & Self-Service Kiosk: factory-direct supply for campus and mall entry gates in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Indian plate formats (Delhi, Maharashtra, Karnataka series), 0 to 60 km/h, daytime plus IR night mode, 3 m to 8 m read distance.
Measured / specified value: Plate read rate 99.2% at 20 km/h and 97.4% at 60 km/h over a 5,000-pass field test.
Comparison benchmark: Generic OCR engines on the same lane deliver 92% to 95%.
Test condition 2: Lane throughput measured with a 6 m barrier, 1.8 s opening time and continuous 2-vehicle gaps.
Measured / specified value: Recognition and command latency 0.3 s per vehicle; up to 900 vehicles per hour per lane.
Comparison benchmark: Ticketed lanes with manual intervention average 250 to 350 vehicles per hour.
Test condition 3: Ambient light sweep 50 lux to 100,000 lux including direct headlight glare into the camera at 5 m.
Measured / specified value: No recognition loss when glare is present; exposure compensation within 120 ms.
Comparison benchmark: Fixed-exposure cameras lose recognition once headlight glare enters the frame.
Test condition 4: Camera and controller run 720 h continuously at 45 °C with 18 h of rain per 24 h cycle.
Measured / specified value: No frame drops, no card errors; storage media write integrity 100%.
Comparison benchmark: Consumer-grade NVR storage commonly drops frames in the same duty.
Test condition 5: Two-way lane test with mixed cars, buses and trucks at 1:1:0.2 mix over 2,000 passes.
Measured / specified value: Vehicle-class filter accuracy 99.6%; false open events 0.
Comparison benchmark: Plate-only systems without a class filter show 3% to 6% false opens on mixed traffic.
Classification :
PRODUCT DETAILS
Key Features
- Long-range RFID / UHF reading — vehicles are recognised from several metres away without stopping.
- Hands-free operation — tags, cards and remote controls all work with the onboard smart logic board.
- Anti-collision safety — obstacle sensing, auto-rebound and manual override for emergencies and power cuts.
- Flexible boom options — straight, folding and fence arms from 1 m to 12 m for every entrance width.
- Weather-proof build — IP54–IP66 rated housing that works in rain, heat and dust.
- Integration-ready — connects to ANPR cameras, parking software, intercoms and gate automation.
Specifications
| Type | Card, Code, Key, Smartphone, UHF |
|---|---|
| Special Features | Anti-Theft, Siren, Motion Detection, Night Vision, Audio |
| Storage | Cloud, Memory Card |
| Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China |
| Model Number | YH-PDPY601 |
| Brand Name | Baroxon |
| Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day |
| Open/Close Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding / Fence (Customizable) |
| Boom Arm Length | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W |
| MCBF | 3M / 5M / 10M cycles |
| Chassis Thickness | 2.0mm Cold Rolled Steel |
| MTTR | < 30 minutes |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single industrial-grade heavy-duty unit |
Applications

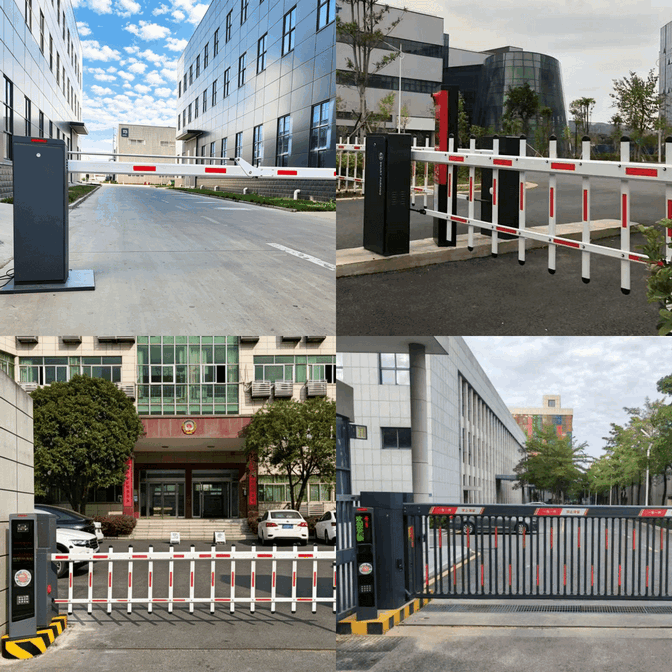

Residential gated communities and apartments, commercial car parks, industrial estates, warehouses, factories and campus entry points across India.
Product Video
Frequently Asked Questions
How does hands-free entry work?
An RFID or UHF tag in the vehicle is read from several metres away, the system verifies it and the barrier opens automatically.
What happens during a power cut?
A manual clutch override lets you raise the boom by hand, and the system can be connected to a UPS or battery backup.
Can it integrate with ANPR cameras?
Yes, the smart logic board supports license plate cameras alongside RFID for dual verification.
Which boom lengths are available?
Straight, folding and fence arms are available from 1 m up to 12 m depending on the model.
Is it suitable for outdoor installation?
Yes, with IP54–IP66 weather protection and an operating range that covers all Indian climates.
