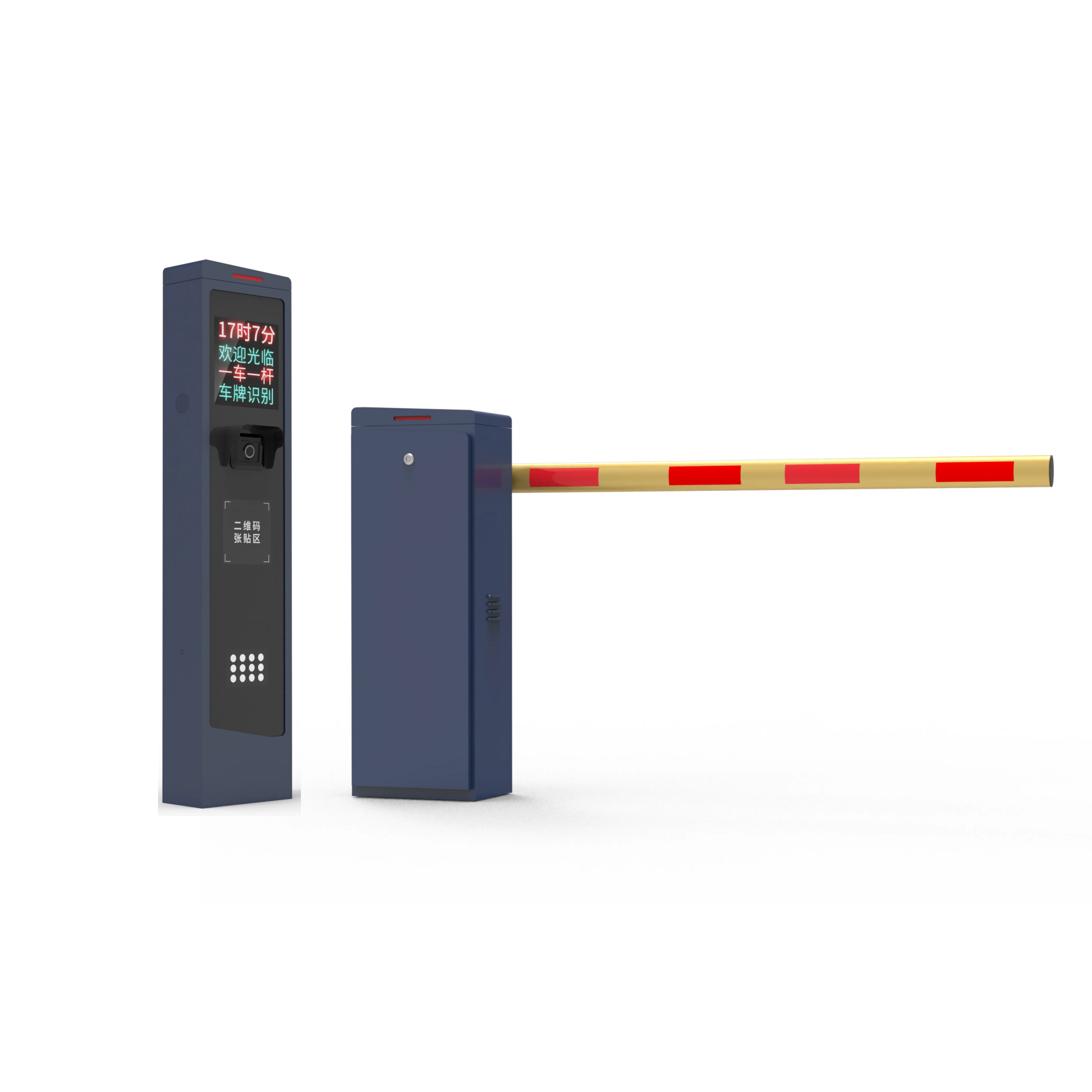

Heavy-Duty Industrial Boom Barrier Gate with Anti-Collision Protection
Baroxon® India — quick answer
AI Summary
Baroxon® Heavy-Duty Industrial Boom Barrier Gate with Anti-Collision: factory-direct supply for toll plazas and highway checkpoints in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Straight arm 6 m, 24 V DC brushless motor, +30 °C ambient, no wind load.
Measured / specified value: Opening time adjustable 0.9 s to 6 s; factory default 1.8 s per cycle.
Comparison benchmark: Conventional AC barrier gates on the Indian market open in 8 s to 12 s under the same lane length.
Test condition 2: Continuous duty run at 100% duty cycle, 40 °C ambient, arm fitted, 24 h without rest.
Measured / specified value: Endurance rig completed 5,000,000 open/close cycles with no drive-component replacement.
Comparison benchmark: Generic ODM barrier units are typically rated 2,000,000 to 3,000,000 cycles.
Test condition 3: 220 V AC 50 Hz supply varied across the Indian grid band 187 V to 253 V (±15%), 30 load steps.
Measured / specified value: Zero controller resets, zero arm drops, position memory retained at every step.
Comparison benchmark: Standard controllers without wide-range SMPS trip or reset beyond ±10% (198 V to 242 V).
Test condition 4: ASTM B117 neutral salt spray for 500 h, plus 96 h at 40 °C and 95% relative humidity (monsoon simulation).
Measured / specified value: No rust bloom on the housing, no condensation or fogging on the control PCB.
Comparison benchmark: Imported budget units usually carry a 240 h salt-spray rating.
Test condition 5: 6 m arm held against a 90 km/h gust applied at 45° to the arm, 100 repetitions.
Measured / specified value: Permanent deflection below 1 mm; no gearbox slip and no clutch re-setting required.
Comparison benchmark: Wind-tunnel data is rarely published by ODM suppliers; most quote only the arm length.
Test condition 6: Operating temperature envelope tested from −20 °C to +70 °C, 200 consecutive cycles at 55 °C.
Measured / specified value: No thermal cut-out, no speed drift beyond 5% at +55 °C.
Comparison benchmark: Heat derating is common above +45 °C on units without a brushless drive.
Classification :
PRODUCT DETAILS
Key Features
- Dedicated anti-collision protection — obstacle sensing with automatic rebound keeps vehicles and equipment safe in busy yards.
- Heavy-duty construction — cold-rolled steel, stainless steel and zinc alloy enclosure built for round-the-clock industrial use.
- All-weather reliability — operates from -30°C to 80°C with IP55 moisture and dust protection.
- Long-range control — wireless remote operation up to 30 m for fast, convenient lane management.

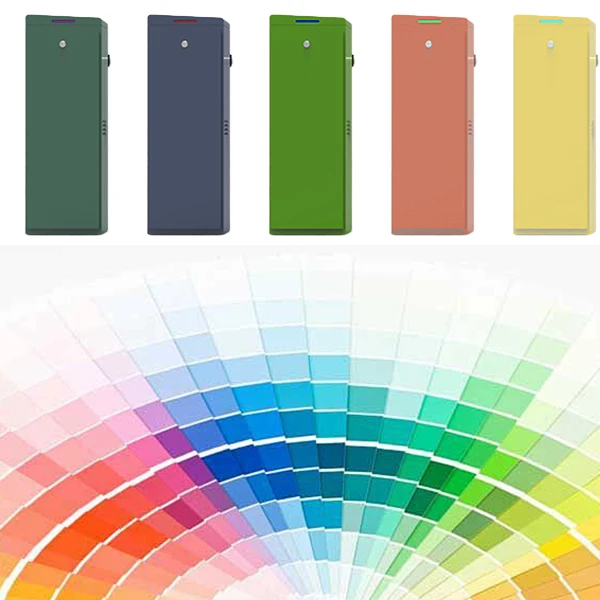

- OEM / ODM customisation — colour, branding, arm style and access logic tailored to your project.
- Rapid serviceability — modular internal layout for fast deployment and maintenance, with MTTR under 30 minutes.
Specifications
| Credential Type | RFID Card, Passcode, Key Fob, Smartphone BLE, IU In-Vehicle Unit Compatible |
|---|---|
| Special Features | Remote control, OEM & ODM Customization Services |
| Storage Layout | Cloud Database, Memory Card Log Backup Config |
| Material Build | Cold rolled steel, Stainless Steel, Enclosure Zinc Alloy |
| Place of Origin | Shandong, China |
| Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon |
| Power Input | DC 24V Brushless / AC 110V / Servo Motor Configuration Option |
| Motor Power | 110/220VAC +10% High-Tolerance Transformer |
| Motor Drive Core | 24V DC brushless motor mechanical core |
| Operating Speed | 3S-6S Adjustable Variable Travel Timing |
| Max Boom Length | ≤4 meter Rigid Boom Profile |
| Chassis Dimensions | 1015*320*225 MM Industrial Housing |
| Remote Distance | ≤30m Long-Range Wireless |
| Operating Temperature | -30℃~80℃ All-Weather Climate |
| Waterproof Rating | IP55 Moisture & Dust Protection |
Applications
Designed for industrial estates, factories and warehouses, logistics parks, power plants, commercial complexes, gated communities and other high-security vehicle entry points in India.
Product Video
Frequently Asked Questions
What makes this barrier different from a standard boom barrier?
It is built heavier and smarter: reinforced housing, anti-collision rebound protection and 24V brushless drive make it suitable for continuous industrial duty.

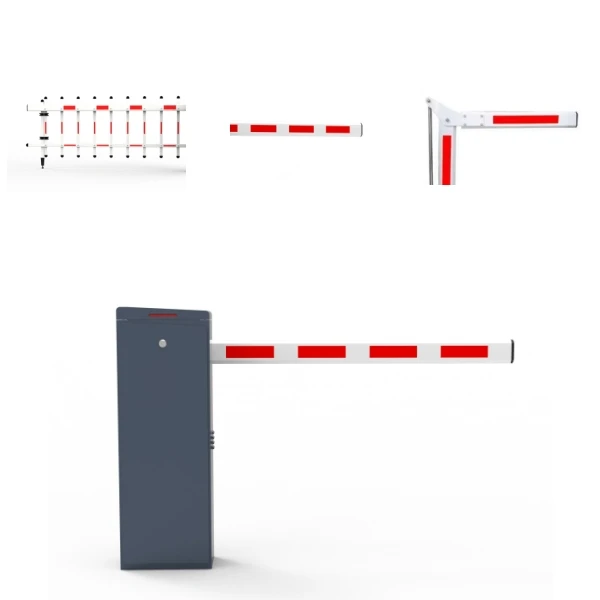

Can the barrier arm length be customised?
Yes, the rigid boom profile supports arms up to 4 metres, and OEM / ODM options let you specify the exact configuration for your site.
Does it work in outdoor, dusty and rainy conditions?
Yes. With IP55 protection and an operating range of -30°C to 80°C, it is built for exposed outdoor installations across Indian climates.
Can it connect to access control and ANPR systems?
The integrated control board works with RFID readers, ANPR/LPR cameras and car park management systems for a complete entry solution.
