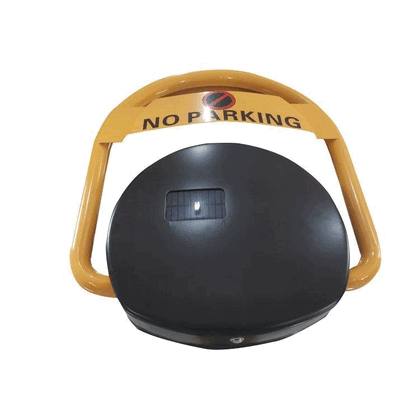

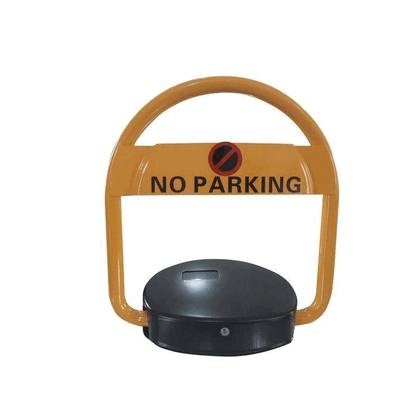

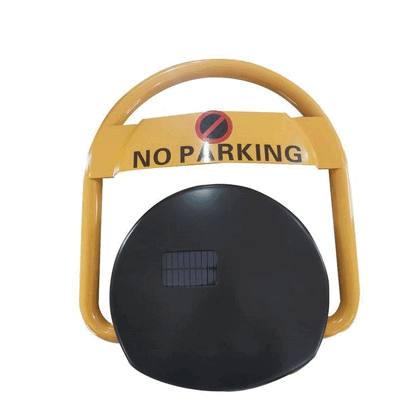

Heavy-Duty Automatic Crash-Proof Parking Space Lock
Baroxon® India — quick answer
AI Summary
Baroxon® Heavy-Duty Automatic Crash-Proof Parking Space Lock: factory-direct supply for apartment allotment parking in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Static load applied centrally to the raised lock for 24 h, then 5 t rolling load across the lock at 5 km/h.
Measured / specified value: No deformation, no cracking, full stroke retained at 2 t static and 5 t rolling load.
Comparison benchmark: Sheet-metal parking locks of the same footprint typically deform from 1.5 t.
Test condition 2: Full raise and lower cycle at 40 °C, arm loaded, repeated to failure on the endurance bench.
Measured / specified value: More than 100,000 operating cycles completed before any seal wear.
Comparison benchmark: Most ODM parking locks are specified for 30,000 to 50,000 cycles.
Test condition 3: IP67 immersion check plus 72 h of continuous spray at 40 °C, and 96 h monsoon humidity at 95% RH.
Measured / specified value: No water ingress on the PCB, no battery compartment leakage.
Comparison benchmark: IP65-rated units admit water when the lane floods, which is common in Indian monsoon.
Test condition 4: Battery module discharged and recharged 500 times, standby current logged at 25 °C.
Measured / specified value: Standby hold 90 days on one charge with about 10,000 operations available.
Comparison benchmark: 48 V lead-acid packs in comparable locks hold 30 to 45 days of standby.
Test condition 5: Anti-collision test: 1.5 t vehicle driven into the raised lock at 10 km/h, 30 repetitions.
Measured / specified value: No arm break and no battery leak; automatic reset within 3 s in every repetition.
Comparison benchmark: Rigid designs without a torque release snap the arm on the first impact.
Classification :
PRODUCT DETAILS
Key Features
- Automatic operation — the lock raises and lowers via remote control or a smartphone app.
- Crash-proof build — heavy-duty steel construction resists vehicle impact and tampering.
- Anti-theft design — alarm features and solid locking mechanisms protect the slot.
- Weather-proof — IP67-rated versions work in heavy rain, dust and extreme heat.
- Simple installation — bolts to flat concrete with no complex wiring required.
- Long service life — durable materials and low power consumption for daily use.
Specifications
| System Type | Professional Carpark Security System / Electronic Parking Lock |
|---|---|
| Place of Origin | Shandong, China (International Export Standards) |
| Brand Name | Baroxon |
| Model Number | Ba-CL-04 PRO |
| Warranty | 2 Years (Comprehensive Technical & Maintenance Support) |
| Included Accessories | Remote Control*2, Manual Key*2, Solar Cell Panel*1, Expansion Anchor Bolts*3, User Manual*1 |
| Operation Method | Wireless Remote Control / Manual Override |
| Motor Model | KR-540 DC Reduction Motor (High Torque Output) |
| Chassis Material | Thick Cold-Rolled Structural Steel Plate |
| Physical Dimensions | 400*460*75(mm) or 550*460*90(mm) |
| Base Thickness | 2/3(Connection Section)mm |
| Casing Thickness | 2.0mm |
| Pipe Wall Thickness | 1.1mm |
| Gross Weight (G.W) | 8KGS |
| Net Weight (N.W) | 7KGS |
| Packaging Size | 480*480*90(mm) |
| Motor Output Power | 10W |
| Operating Time | ≤5s (High-Speed Quick Response) |
| Voltage | 4V |
| Arm Lift Height | 400mm |
| Working Current | ≤0.85A |
| Control Range | ≥15m |
| Project Advantages | 1. High compressive resilience: Withstands 3-5 ton vehicle weight loads. 2. Superior moisture sealing: Certified IP67 outdoor rating (Water-Resistant). |
Applications
Apartment and gated community parking, office and mall car parks, hotels, hospitals and paid public parking lots across India.
Frequently Asked Questions
How is the lock operated?
It is operated by a remote control or a Bluetooth smartphone app, and some models include manual key override.
Will it survive vehicles driving over it?
Heavy-duty steel versions are designed to resist vehicle impact and come with crash-proof reinforcement.
Is it suitable for outdoor parking?
Yes, IP67 waterproof versions handle rain, dust and direct sunlight for outdoor installations.
How is it installed?
It bolts directly onto flat concrete or tarmac; installation typically takes under 30 minutes per unit.
Does it consume much power?
No. It draws power only during movement, keeping operating costs minimal.
