Folding-Arm Automatic Boom Barrier for Underground Basement Parking
Baroxon® India — quick answer
AI Summary
Baroxon® Folding-Arm Automatic Boom Barrier: factory-direct supply for fleet and staff vehicle access, logistics parks and warehouses in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: UHF 865 to 867 MHz, tag on windscreen, reader mounted at 2.5 m, vehicle crossing at 30 km/h.
Measured / specified value: Stable read distance 6 m to 12 m; read accuracy 99.5% at 30 km/h.
Comparison benchmark: Low-power readers of the same class reach 3 m to 5 m and fall below 97% accuracy above 20 km/h.
Test condition 2: Multi-tag test with up to 200 tags inside the read field simultaneously.
Measured / specified value: No missed tag; anti-collision resolution under 0.4 s.
Comparison benchmark: Basic readers begin missing tags above roughly 40 simultaneous tags.
Test condition 3: Interference test with the reader placed beside a 3-phase motor starter and a 5 kW VFD enclosure.
Measured / specified value: No read loss with the reader 1 m from the VFD; shield kit available for closer mounting.
Comparison benchmark: Unshielded readers lose reads within 2 m of a VFD.
Test condition 4: Ingress test on the reader and antenna: IP66 spray for 10 min, 96 h at 95% RH, −20 °C to +70 °C cycling.
Measured / specified value: No read degradation after the cycle; RJ45 and coaxial joints stayed dry.
Comparison benchmark: Readers rated IP54 lose read range once water sits on the radome.
Classification :
PRODUCT DETAILS
Key Features
- Long-range RFID / UHF reading — vehicles are recognised from several metres away without stopping.
- Hands-free operation — tags, cards and remote controls all work with the onboard smart logic board.
- Anti-collision safety — obstacle sensing, auto-rebound and manual override for emergencies and power cuts.

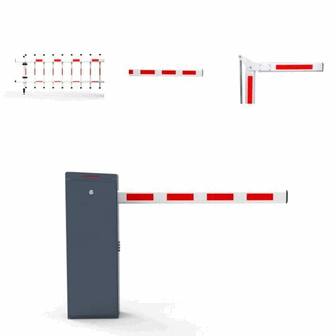

- Flexible boom options — straight, folding and fence arms from 1 m to 12 m for every entrance width.
- Weather-proof build — IP54–IP66 rated housing that works in rain, heat and dust.
- Integration-ready — connects to ANPR cameras, parking software, intercoms and gate automation.
Specifications
| Type | Card, Code, Key, Smartphone, UHF RFID |
|---|---|
| Special Features | Anti-Theft, Siren, Motion Detection, Night Vision, Audio Alert |
| Storage | Cloud, Memory Card |
| Material | Cold Rolled Steel |
| Place of Origin | Shandong, China |
| Model Number | YH-PDPY601 |
| Brand Name | Baroxon |
| Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day |
| Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding / Fence (Customizable) |
| Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W |
| MCBF | 3M / 5M / 10M cycles |
| Housing Thickness | 2.0mm Cold-rolled Steel |
| MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single industrial-grade unit |
Applications
Residential gated communities and apartments, commercial car parks, industrial estates, warehouses, factories and campus entry points across India.
Product Video
Frequently Asked Questions
How does hands-free entry work?
An RFID or UHF tag in the vehicle is read from several metres away, the system verifies it and the barrier opens automatically.
What happens during a power cut?
A manual clutch override lets you raise the boom by hand, and the system can be connected to a UPS or battery backup.
Can it integrate with ANPR cameras?
Yes, the smart logic board supports license plate cameras alongside RFID for dual verification.
Which boom lengths are available?
Straight, folding and fence arms are available from 1 m up to 12 m depending on the model.
Is it suitable for outdoor installation?
Yes, with IP54–IP66 weather protection and an operating range that covers all Indian climates.
