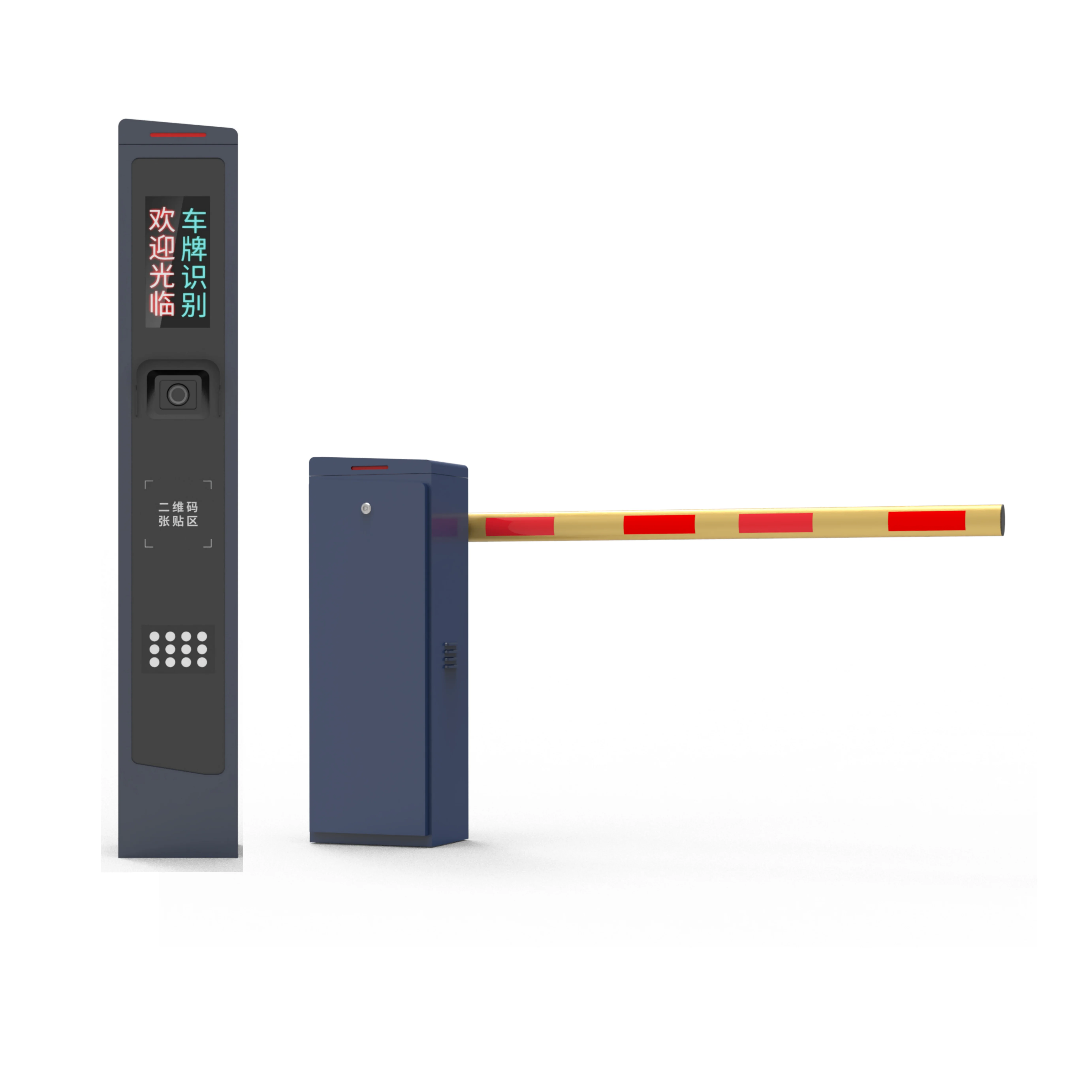

Brushless Motor ANPR Parking Barrier Gate for Touch-Free Access
Baroxon® India — quick answer
AI Summary
Baroxon® Brushless Motor ANPR Parking Barrier Gate: factory-direct supply for campus and mall entry gates, resident and staff parking in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Indian plate formats (Delhi, Maharashtra, Karnataka series), 0 to 60 km/h, daytime plus IR night mode, 3 m to 8 m read distance.
Measured / specified value: Plate read rate 99.2% at 20 km/h and 97.4% at 60 km/h over a 5,000-pass field test.
Comparison benchmark: Generic OCR engines on the same lane deliver 92% to 95%.
Test condition 2: Lane throughput measured with a 6 m barrier, 1.8 s opening time and continuous 2-vehicle gaps.
Measured / specified value: Recognition and command latency 0.3 s per vehicle; up to 900 vehicles per hour per lane.
Comparison benchmark: Ticketed lanes with manual intervention average 250 to 350 vehicles per hour.
Test condition 3: Ambient light sweep 50 lux to 100,000 lux including direct headlight glare into the camera at 5 m.
Measured / specified value: No recognition loss when glare is present; exposure compensation within 120 ms.
Comparison benchmark: Fixed-exposure cameras lose recognition once headlight glare enters the frame.
Test condition 4: Camera and controller run 720 h continuously at 45 °C with 18 h of rain per 24 h cycle.
Measured / specified value: No frame drops, no card errors; storage media write integrity 100%.
Comparison benchmark: Consumer-grade NVR storage commonly drops frames in the same duty.
Test condition 5: Two-way lane test with mixed cars, buses and trucks at 1:1:0.2 mix over 2,000 passes.
Measured / specified value: Vehicle-class filter accuracy 99.6%; false open events 0.
Comparison benchmark: Plate-only systems without a class filter show 3% to 6% false opens on mixed traffic.
Classification :
PRODUCT DETAILS
Key Features
- Fully automatic ANPR — the barrier reads the plate, lifts and records the vehicle without any driver action.
- Quiet 220V brushless motor — digital frequency conversion gives smooth, low-noise, low-vibration operation.
- Built for high traffic — continuous-duty design rated for 5,000 cycles per day with up to 10 million MCBF.
- Touch-free experience — reduces queues, staffing and the spread of contact points at busy entries.
- Flexible configuration — straight, folding and fence arms from 1 m to 6 m with adjustable opening speeds.
- Reliable in any condition — anti-collision safety, manual power-failure override and weather-proof housing.
Specifications
| Access Credentials | RFID Card, Code, Key, Smartphone, Smart Credentials |
|---|---|
| Special Features | Anti-Theft, Built-in Siren, Motion Detection, Night Vision, 1-Way Audio, Attendance |
| Storage Layout | Cloud Storage, Memory Card Architecture |
| Construction Material | Cold-rolled Steel, Stainless Steel, Heavy Zinc Alloy Enclosure |
| Place of Origin | Shandong, China |
| Model Number | YH-PDPY601 |
| Brand Name | Baroxon |
| Motor Type | Brushless DC 24V / AC 220V / Servo Motor Synchronization |
| Duty Cycle | 100% / Continuous / 5000 cycles per day Ingress Peak |
| Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable Variable Travel) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) |
| Arm Length Range | 1m - 6m (Customizable Profile Clearance) |
| Power Consumption | Peak: 140W / Standby:<5W Eco Circuitry |
| MCBF Rating | 3 million / 5 million / 10 million Mean Cycles |
| Housing Construction | 2.0mm Cold-rolled Steel / Weather-Resistant Powder Coating |
| MTTR Metric | < 30 minutes Rapid Component Exchange |
| Protection Class | IP54 / IP65 / IP66 Certified Dust & Water Seal Proof |

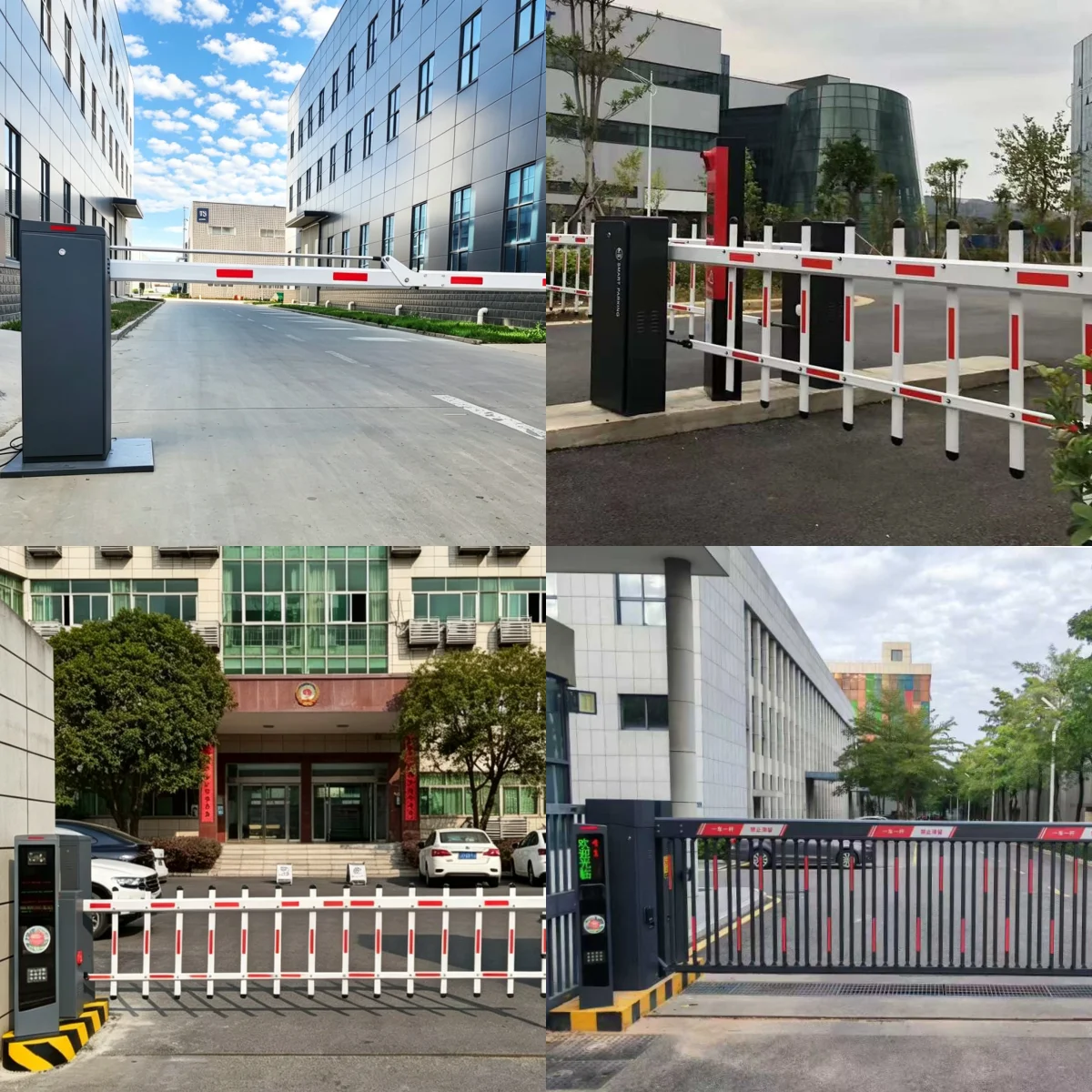

Applications
Ideal for commercial car parks, office campuses, airports and metro stations, hospitals, universities, gated communities and smart-city parking projects across India.
Product Video
Frequently Asked Questions
How does an ANPR barrier work?
A camera reads the vehicle's number plate, the system checks it against the database, and the barrier opens automatically while the entry is recorded.
What maintenance does the brushless motor need?
Very little. The brushless design has no brushes to replace, which lowers service frequency and lifetime running costs.
Can it handle vehicles that stop close to the barrier?
Yes, anti-collision sensing and obstruction auto-rebound protect both vehicles and equipment in tight approaches.
Is training needed to operate the system?
No. The system is fully automated; staff only need a short orientation for the management dashboard and manual override.
