Adjustable-Speed 24V DC Boom Barrier with UHF RFID
Baroxon® India — quick answer
AI Summary
Baroxon® Adjustable-Speed 24V DC Boom Barrier with UHF RFID: factory-direct supply for fleet and staff vehicle access in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: UHF 865 to 867 MHz, tag on windscreen, reader mounted at 2.5 m, vehicle crossing at 30 km/h.
Measured / specified value: Stable read distance 6 m to 12 m; read accuracy 99.5% at 30 km/h.
Comparison benchmark: Low-power readers of the same class reach 3 m to 5 m and fall below 97% accuracy above 20 km/h.
Test condition 2: Multi-tag test with up to 200 tags inside the read field simultaneously.
Measured / specified value: No missed tag; anti-collision resolution under 0.4 s.
Comparison benchmark: Basic readers begin missing tags above roughly 40 simultaneous tags.
Test condition 3: Interference test with the reader placed beside a 3-phase motor starter and a 5 kW VFD enclosure.
Measured / specified value: No read loss with the reader 1 m from the VFD; shield kit available for closer mounting.
Comparison benchmark: Unshielded readers lose reads within 2 m of a VFD.
Test condition 4: Ingress test on the reader and antenna: IP66 spray for 10 min, 96 h at 95% RH, −20 °C to +70 °C cycling.
Measured / specified value: No read degradation after the cycle; RJ45 and coaxial joints stayed dry.
Comparison benchmark: Readers rated IP54 lose read range once water sits on the radome.
Classification :
PRODUCT DETAILS
Key Features
- Dependable boom operation — smooth, precise opening and closing for daily high-volume traffic.

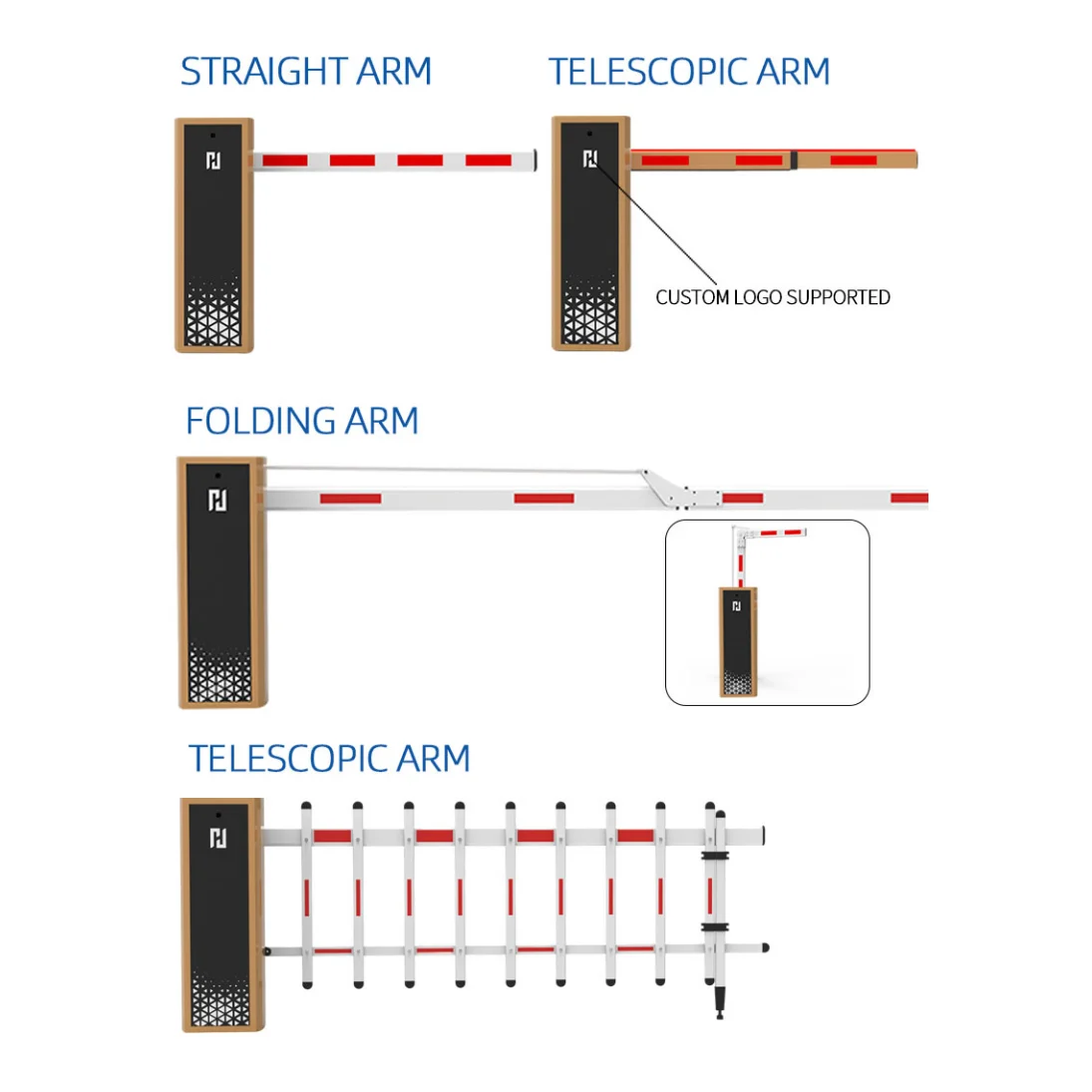

- Adjustable speed and arm options — straight, folding and fence arms from 1 m to 12 m.
- Anti-collision safety — obstacle sensing, auto-rebound and manual override for emergencies.
- Continuous-duty build — rated for thousands of cycles a day with low maintenance.
- Integration-ready — connects with ANPR/LPR cameras, RFID readers and parking software.
- Weather-proof housing — IP54–IP66 rated for Indian rain, heat and dust.
Specifications
| Access Method | RFID Card, PIN Code, Key, Smartphone, Others |
|---|---|
| Special Features | Long-range remote management, OEM&ODM support |
| Storage Type | Cloud server, Memory card |
| Chassis Construction | Cold-rolled steel, Stainless steel, Zinc alloy |
| Place of Origin | Shandong, China |
| Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon |
| Power Input | DC 24V Brushless / AC 110V / Servo Motor |
| Motor Power Rating | 110/220VAC +10% |
| Motor Drive Unit | 24V DC brushless motor |
| Operation Speed | 3S-6S |
| Maximum Arm Length | ≤4 meters |
| Chassis Dimensions | 1015*320*225 MM |
| Remote Control Range | ≤30m |
| Operating Temperature | -30℃~80℃ |
| Waterproof Rating | IP55 |
| Package Dimensions | 110.5X43.5X40.5 cm |
| Gross Weight | 48.000 kg |
Applications

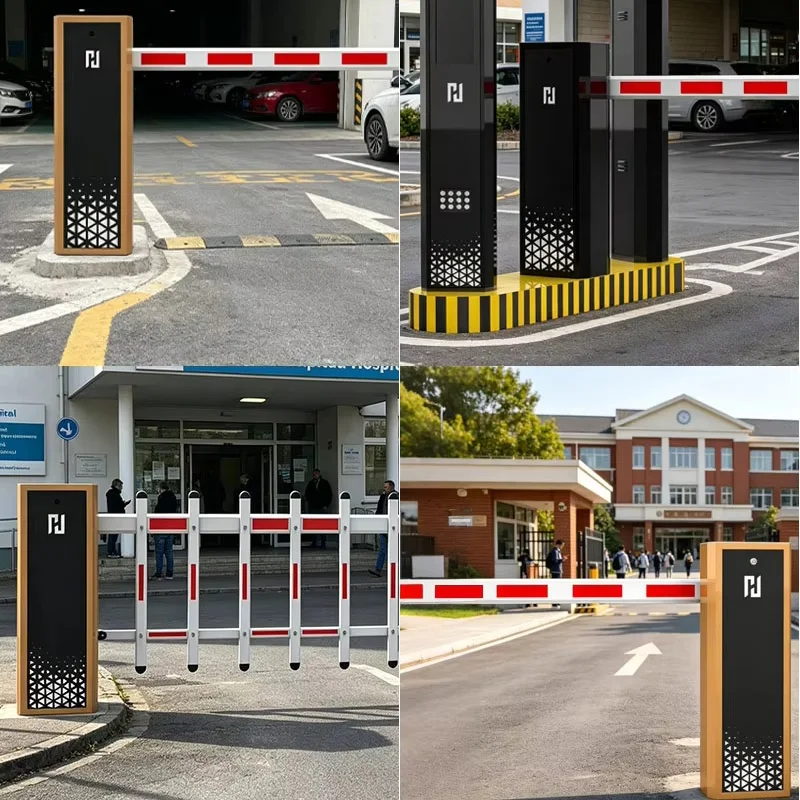

Toll plazas, commercial car parks, office and hotel parking, residential gated communities, industrial estates, hospitals, airports and logistics hubs across India.
Product Video
Frequently Asked Questions
How fast can this boom barrier operate?
Opening speeds are adjustable and range from about 0.6 seconds in express mode to 6 seconds for long arms, depending on the model.
Which arm types are available?
Straight, folding (90°/180°) and two/three-rail fence arms are available, with lengths from 1 m up to 12 m.
Can it connect to ANPR/LPR and RFID systems?
Yes, the smart control board supports license plate cameras, RFID/UHF readers, loop detectors and parking software.
What happens during a power cut?
A manual clutch override lets you raise the boom by hand, and UPS or battery backup can be added.
Is it suitable for outdoor installation?
Yes, with IP54–IP66 weather protection and a temperature range suited to Indian climates.
